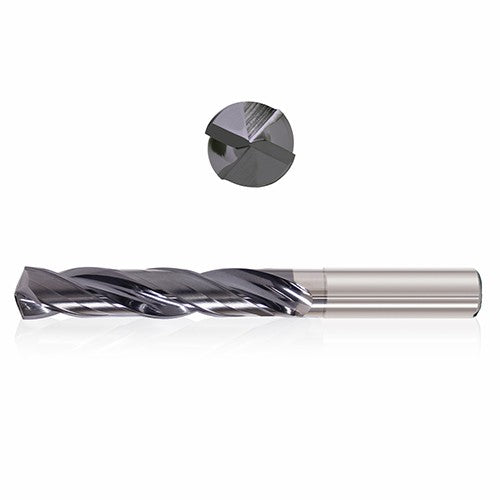

DC 7/16″ x DCONMS 7/16″ x LCF 2.88″ x OAL 5″, 5xD, SIG 135°
Item #: CW8110892
Brand: Precision Cutting Tools
Model #: 9585958
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 7/16″ |
| Shape | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 7/16″ |
| Tool Type | Solid Carbide Drill |
| Decimal Equivalent | 0.4375″ |
| Flute Type | Helical |
| Length Group | 5xD |
| Grade | H5009 |
| Coating | Varianta Supral |
| Measurement Type | Inch |
| Applicable Material | Steel | Stainless Steel |
| Series/List # | SX |
| Connection Diameter Machine Side (DCONMS) | 7/16″ |
| Usable Length (LU) | 2.2188″ |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 2.88″ |
| Point Angle (SIG) | 135 Degrees |
| Overall Length (OAL) | 5″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Flute Count (NOF) | 2 |
| Number of Teeth | 2 |
| Feature | SINGLE-MARGIN DRILL, NON-COOLANT THRU |
| Shank Length (LS) | 2-1/8″ |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical |
| Body Material | Carbide |
| Shank Standard | h6 |
