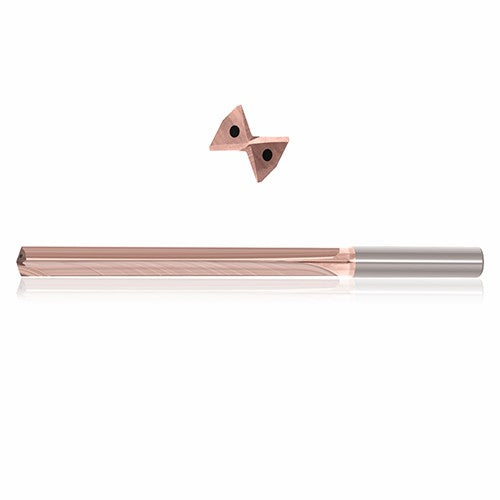

0.4844 mm Dia. × 14 mm Shank × 131 mm Flute Length × 178 mm OAL, 8xD, 130°, ZircoPlus, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill
Item #: CW8110576
Brand: Precision Cutting Tools
Model #: 9546366
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.4844 mm |
| Shape | Round |
| Decimal Equivalent | 0.0191″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 0.4844 mm |
| Tool Type | Solid Carbide Drill |
| Length Group | 8xD |
| Flute Type | Straight |
| Coating | ZircoPlus |
| Grade | H5006 |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 14 mm |
| Series/List # | FXC |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 4.4309 mm |
| Point Angle (SIG) | 130 Degrees |
| Length Chip Flute (LCF) | 131 mm |
| Flute Helix Angle (FHA) | 0 Degrees |
| Overall Length (OAL) | 178 mm |
| Number of Teeth | 2 |
| Flute Count (NOF) | 2 |
| Shank Length (LS) | 1.8504 mm |
| Feature | FOUR-MARGIN DRILL, STRAIGHT FLUTES, COOLANT THRU |
| Shank Type | Cylindrical |
| Cutting Direction (HAND) | Right Hand |
| Shank Standard | h6 |
