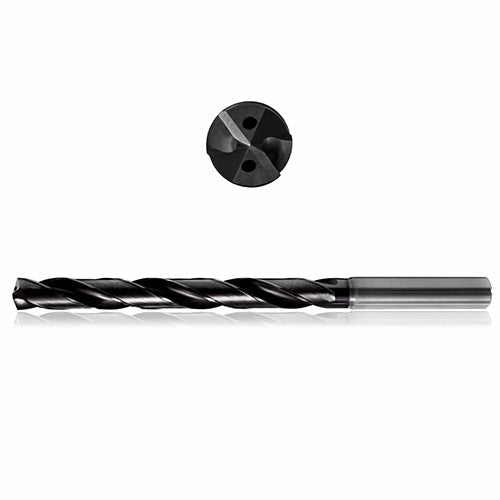

0.4844 mm Dia. × 14 mm Shank × 77 mm Flute Length × 124 mm OAL, 5xD, 140°, Varianta Supral, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill
Item #: CW8110340
Brand: Precision Cutting Tools
Model #: 9544746
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.4844 mm |
| Shape | Round |
| Decimal Equivalent | 0.0191″ |
| Cutting Edge Material | Carbide |
| Length Group | 5xD |
| Tool Type | Solid Carbide Drill |
| Coating | Varianta Supral |
| Flute Type | Helical |
| Applicable Material | Steel | Stainless Steel |
| Grade | H5009 |
| Connection Diameter Machine Side (DCONMS) | 14 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
| Series/List # | DXC |
| Point Angle (SIG) | 140 Degrees |
| Usable Length (LU) | 2.3049 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Length Chip Flute (LCF) | 77 mm |
| Number of Teeth | 2 |
| Overall Length (OAL) | 124 mm |
| Shank Length (LS) | 1.8504 mm |
| Flute Count (NOF) | 2 |
| Shank Type | Cylindrical |
| Feature | DOUBLE-MARGIN DRILL, COOLANT THRU |
| Shank Standard | h6 |
| Cutting Direction (HAND) | Right Hand |
