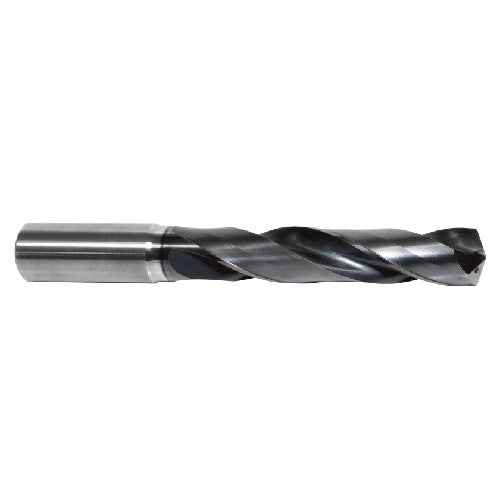

Precision Cutting Tools 135° POINT, TRIPLE MARGIN, ZIRCO COATING FOR NON FERROUS & IRONS
Item #: CW8110100
Brand: Precision Cutting Tools
Model #: 9538984
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 7/16″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 7/16″ |
| Tool Type | Solid Carbide Drill |
| Decimal Equivalent | 0.4375″ |
| Flute Type | Helical |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.11 mm |
| Grade | A5010 ZircoPlus |
| Length Group | 3xD |
| Measurement Type | Inch |
| Coating | ZrCN |
| Series/List # | AX |
| Connection Diameter Machine Side (DCONMS) | 7/16″ |
| Usable Length (LU) | 1.4063″ |
| Point Angle (SIG) | 135 Degrees |
| Length Chip Flute (LCF) | 2.06″ |
| Flute Helix Angle (FHA) | 15 Degrees |
| Overall Length (OAL) | 4″ |
| Number of Teeth | 2 |
| Flute Count (NOF) | 2 |
| Shank Length (LS) | 1-15/16″ |
| Feature | TRIPLE-MARGIN DRILL |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Shank Standard | h6 |
| Body Material | Carbide |
| Shape | Round |
