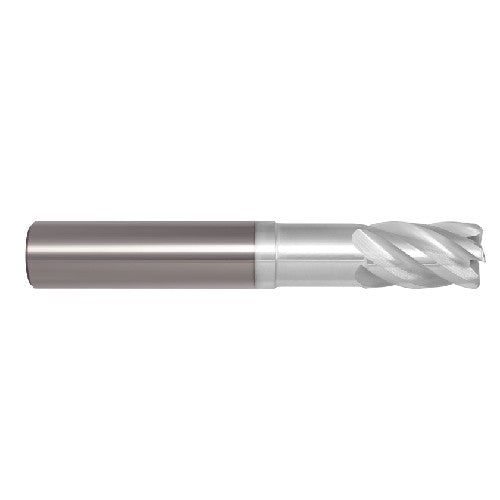

DC 1/2″ x DCONMS 1/2″ x APMX 7/8″ x OAL 5″
Item #: CW8058689
Brand: Precision Cutting Tools
Model #: 9531225
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Number of Teeth | 5 |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Grade | H5008 |
| Depth of Cut Maximum (APMX) | 7/8″ |
| Length Group | Long - Necked |
| Overall Length (OAL) | 5″ |
| End Shape | Ballnose |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | AITiCrN |
| Shank Standard | h6 |
| Flute Count (NOF) | 5 |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 35 Degrees |
| Style | Necked |
| Shank Type | Round |
| Decimal Equivalent | 0.5″ |
| Usable Length (LU) | 3-1/8″ |
| Measurement Type | Inch |
| Application | | Finish | HEM | Semi Finish | |
| Series/List # | 558 |
| Corner Radius (RE) | 1/4″ |
| Shank Size (SS) | 1/2″ |
| Neck Diameter (DN) | 0.48 |
