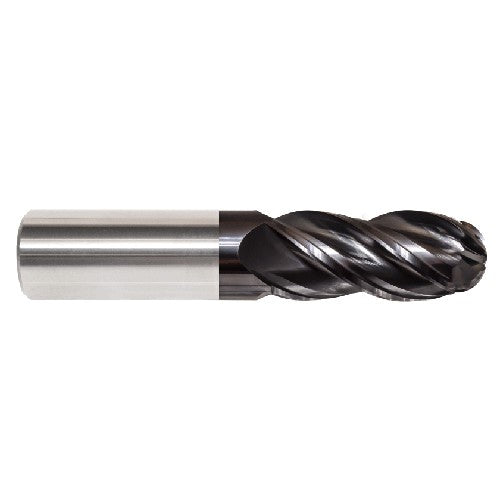

DC 5/16″ x DCONMS 5/16″ x APMX 1/2″ x OAL 2″
Item #: CW8058530
Brand: Precision Cutting Tools
Model #: 9585518
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| Length Group | Stub |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| End Shape | Ballnose |
| Depth of Cut Maximum (APMX) | 1/2″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2″ |
| Shank Standard | h6 |
| Flute Count (NOF) | 4 |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees |
| Decimal Equivalent | 0.3125″ |
| Shank Type | Round |
| Measurement Type | Inch |
| Usable Length (LU) | 1/2″ |
| Series/List # | 452 |
| Application | | Finish | Roughing | Semi Finish | Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.002 ″/tooth |
| Corner Radius (RE) | 0.1563″ |
| Minimum Feed per Tooth (fz(min)) | 0.0006 ″/tooth |
| Number of Teeth | 4 |
| Shank Size (SS) | 5/16″ |
| Tool Type | Solid Carbide Endmill |
