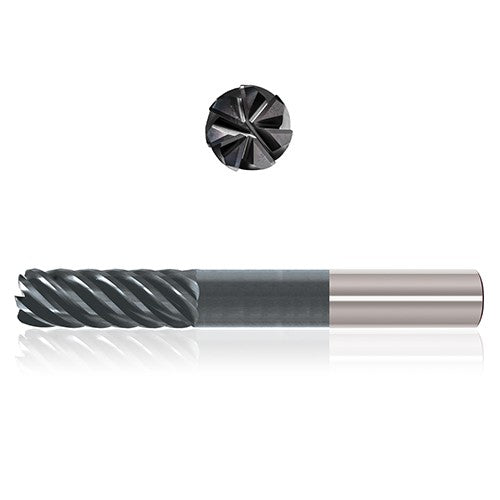

3/8″ Dia. × 3/8″ Shank × 3/4″ DOC × 4″ OAL, Sistral, 7 Flute, Variable Helix, Straight, External, Bullnose, Solid End Mill
Item #: CW8057187
Brand: Precision Cutting Tools
Model #: 9584908
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Neck Diameter (DN) | 0.36″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 7 |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 4″ |
| Maximum Feed per Tooth (fz(max)) | 0.0019″ |
| Coating | Sistral |
| Minimum Feed per Tooth (fz(min)) | 0.0005″ |
| Flute Count (NOF) | 7 |
| Length Group | Standard - Necked |
| Flute Helix Angle (FHA) | Variable |
| Coolant Supply Property (CSP) | External |
| Shank Type | Straight |
| Shank Standard | h6 |
| End Shape | Bullnose |
| Body Material | Carbide |
| Usable Length (LU) | 2-1/8″ |
| Style | Necked |
| Applicable Material | Stainless Steel | Super-Alloys / Titanium |
| Decimal Equivalent | 0.375″ |
| Application | HEM | Semi-Finish | Finish |
| Measurement Type | Inch |
| Corner Radius (RE) | 0.06″ |
| Series/List # | 740 |
| Grade | A5007 |
| Shank Size (SS) | 3/8″ |
