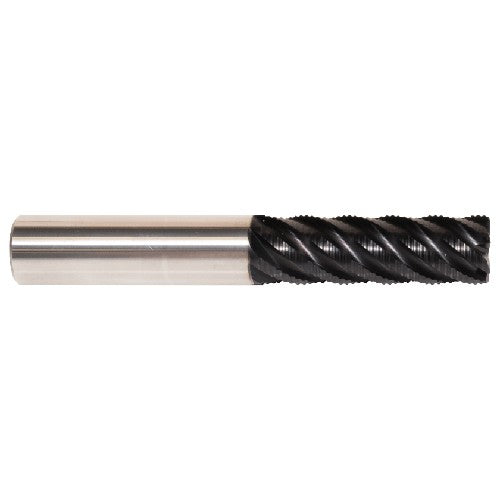

Precision Cutting Tools 452 SERIES 4 FLUTE FOR TOOL STEELS, DUPLEX, PH STAINLESS, & HRSAs
Item #: CW8057076
Brand: Precision Cutting Tools
Model #: 9584852
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 2-1/2″ |
| Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Overall Length (OAL) | 5″ |
| Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Flute Count (NOF) | 4 |
| Length Group | 3 Extra Long |
| Flute Helix Angle (FHA) | 38 Degrees |
| Shank Standard | h6 |
| Shank Type | Round |
| Body Material | Carbide |
| End Shape | Corner Radius |
| Decimal Equivalent | 0.5″ |
| Usable Length (LU) | 2-1/2″ |
| Measurement Type | Inch |
| Application | | Finish | Roughing | Semi Finish | Slotting | |
| Series/List # | 452 |
| Corner Radius (RE) | 0.06″ |
| Shank Size (SS) | 1/2″ |
