Brand: Widia / Part #: 3879416
Item #: 99407439
Brand: Widia
Model #: 3879416
Product Specifications
| Cutting Direction | Right Hand |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 09T3.. |
| Toolholder Style | SCLCR |
| Rake | Positive |
| Rake Angle | 0 (Axial);0 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 95.000 |
| Insert Holding Method | Screw |
| Insert Compatibility | CC..09T3.. |
| Shank Width (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Series | SCLC |
| Overall Length (mm) | 100.0000 |

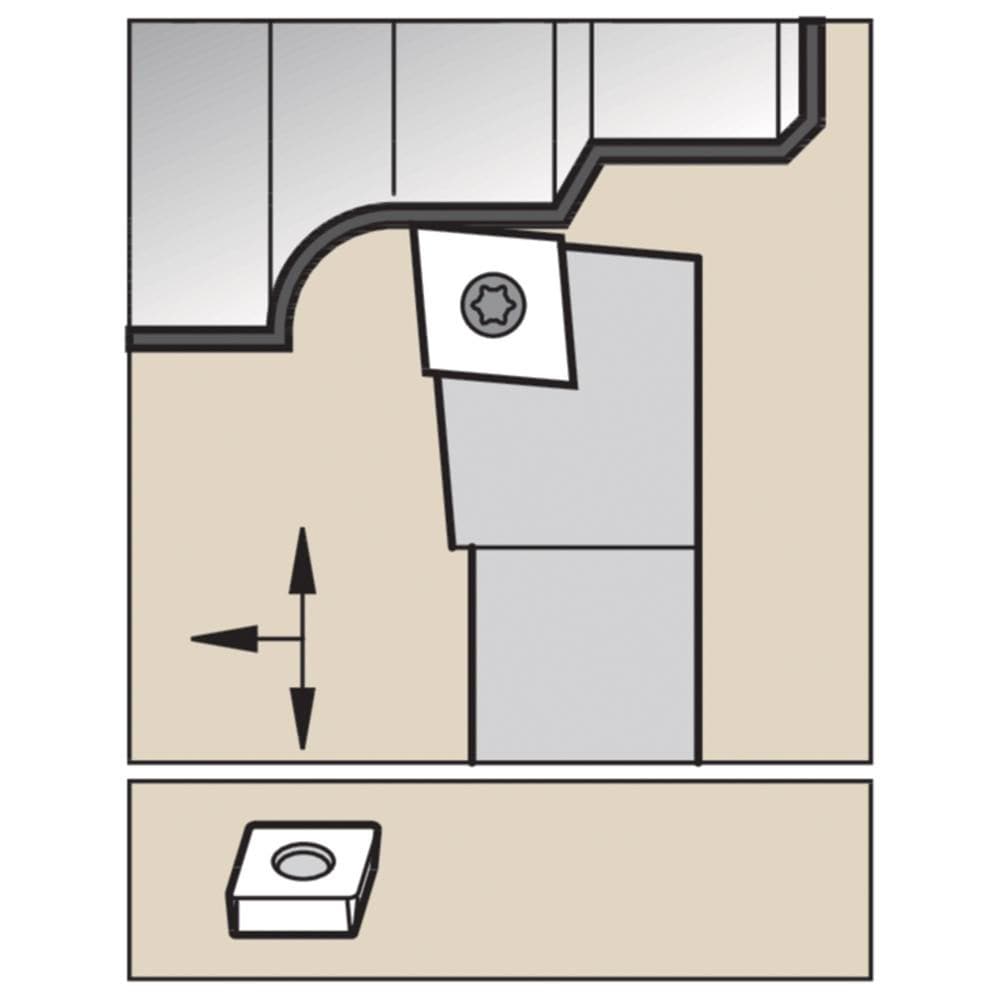

| Cutting Tool Application | Facing; Copying; Turning |
| Head Length (mm) | 15.75 |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 9.53 |
| Toolholder Material | Steel |
| ISO Number | SCLCR1616H09 |
| Complete Insert Compatibility | CC.. |
| Insert Thickness | 3.97 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 9.53 |
