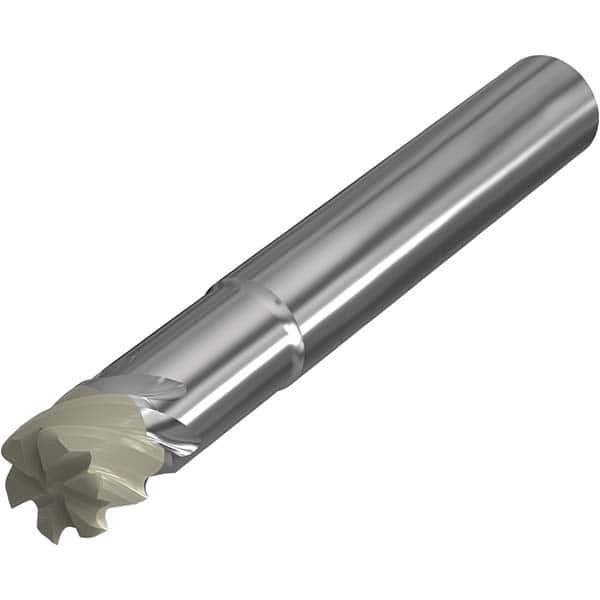

Seco - 25mm Diam 6 Flute Ceramic 4mm Corner Radius End Mill
Item #: 18139469
Brand: Seco
Model #: 10010520
Features and Benefits
Ceramic can be used for cutting at high speed and machining high-strength nickel-based alloys.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 25.00 |
| Mill Diameter (Decimal Inch) | 0.9840 |
| End Type | Corner Radius |
| Corner Radius (mm) | 4 |
| Number of Flutes | 6 |
| Material | Ceramic |
| Finish/Coating | Uncoated |
| Length of Cut (mm) | 8.0000 |
| Shank Diameter (mm) | 25.0000 |
| Overall Length (mm) | 108.0000 |
| Flute Type | Helical |
| Helix Angle | 45 |
| Variable Index | No |
| Variable Helix | No |
| Reach Length (mm) | 50.00 |
| Neck Diameter (mm) | 23.800 |
| Single or Double End | Single |
| Length Type | Short |
| Centercutting | No |
| Flute Direction | Right Hand |
| Shank Type | Straight |
