Brand: Widia / Part #: 3879741
Item #: 98263171
Brand: Widia
Model #: 3879741
Product Specifications
| Cutting Direction | Right Hand |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 1204.. |

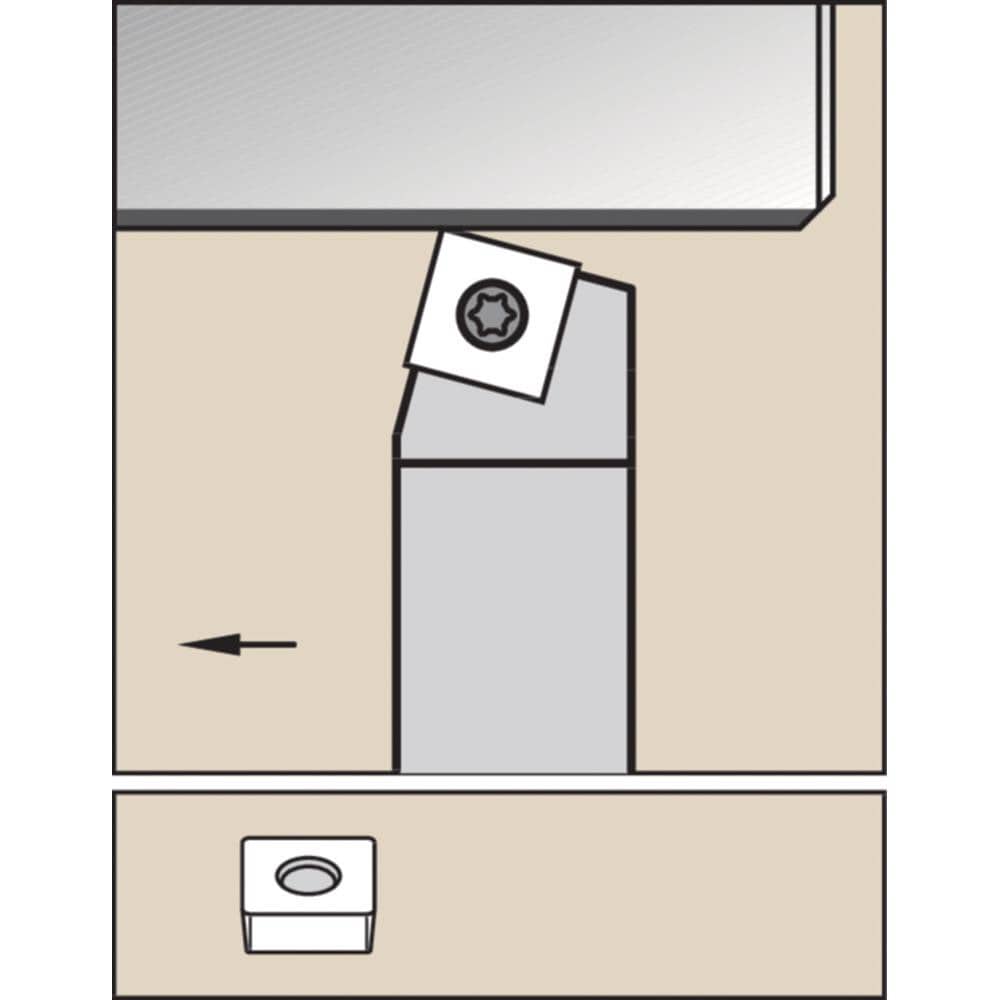

| Toolholder Style | SSBCR |
| Rake | Positive |
| Rake Angle | 0 (Axial);0 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 75.000 |
| Insert Holding Method | Screw |
| Insert Compatibility | SC..1204.. |
| Shank Width (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Series | SSBC |
| Overall Length (mm) | 125.0000 |
| Cutting Tool Application | Facing; Turning |
| Head Length (mm) | 21.26 |
| Back of Bar to Cutting Edge (mm) | 17.00 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 12.70 |
| Toolholder Material | Steel |
| ISO Number | SSBCR2020K12 |
| Complete Insert Compatibility | SC.. |
| Insert Thickness | 4.76 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 12.70 |
