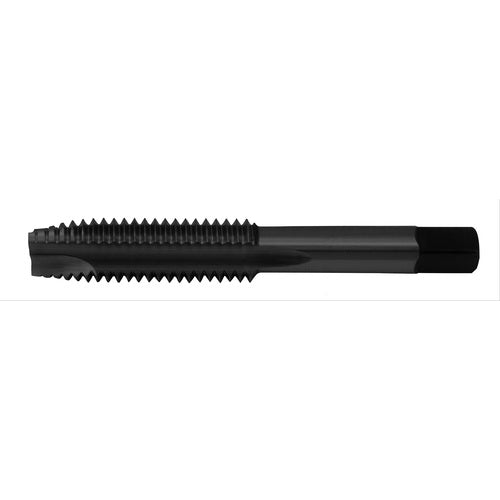

M5X.8 2F D11 SPPT PLG HSS
Item #: CL71313621
Brand: Greenfield Threading
Model #: 313621
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Flute Count (NOF) | 2 |
| Thread Size | M5 × 0.8 |
| Cutting Edge Material | HSS |
| Thread Diameter Size (TDZ) | M5 |
| Applicable Material | Steel |
| Thread Pitch (TP) | 0.8 mm |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Tolerance Class (TCTR) | D11 |
| Flute Type | Straight |
| Usable Length (LU) | 0.38″ |
| End Shape | Square |
| Overall Length (OAL) | 2-3/8″ |
| Shank Type | Round w/ Drive Square |
| Chamfer | Plug |
| Series/List # | SPGP+5-SO |
| Coating | Steam Oxide |
