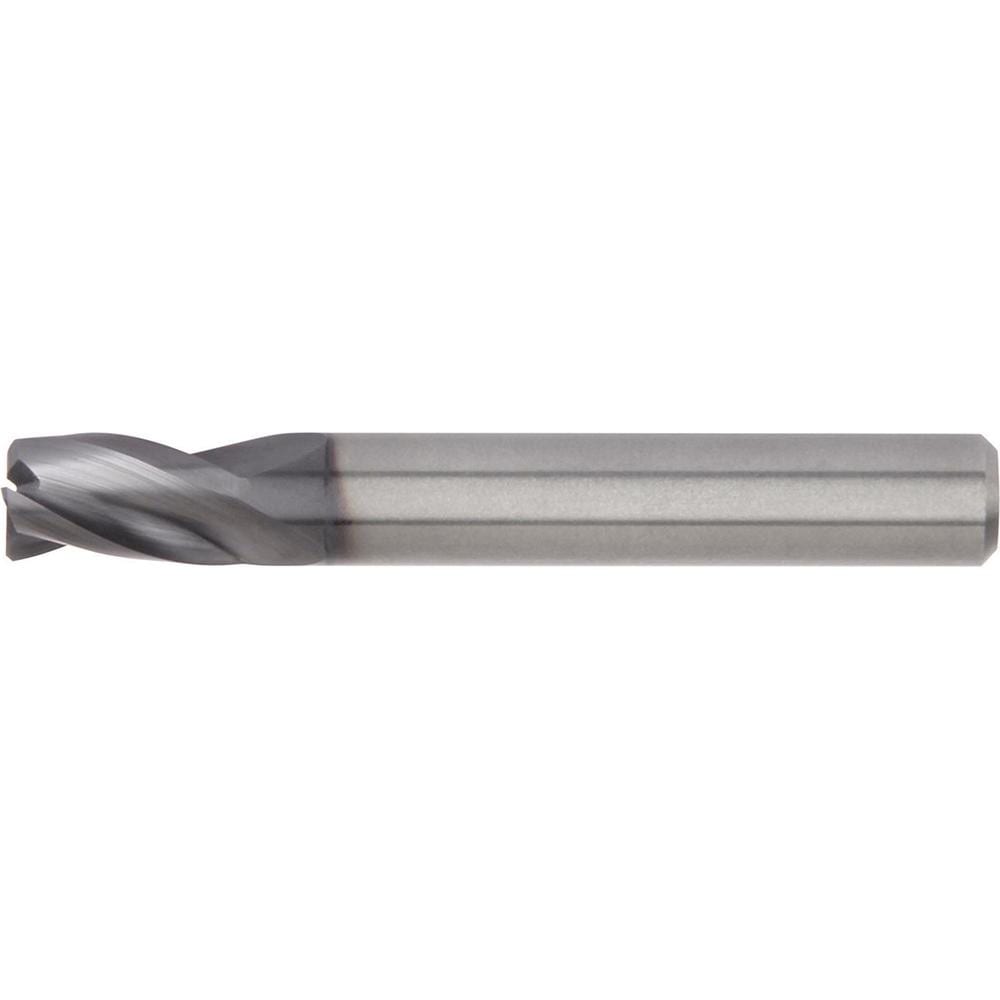

Brand: Widia / Part #: 6144333
Item #: 33976895
Brand: Widia
Model #: 6144333
Product Specifications
| Mill Diameter (mm) | 7.00 |
| Chamfer Width (mm) | 0.10 |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 3 |
| Single Or Double End | Single |
| Overall Length (mm) | 58.00 |
| Length of Cut (mm) | 8.00 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Direction | Right Hand |
| Chipbreaker | No |
| End Type | Single |
| Chamfer Angle | 45 |
| Length Type | Short |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Reach Length (mm) | 18.60 |
| Minimum Helix Angle | 30.00 |
| Maximum Helix Angle | 30.00 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Series | D003 |
