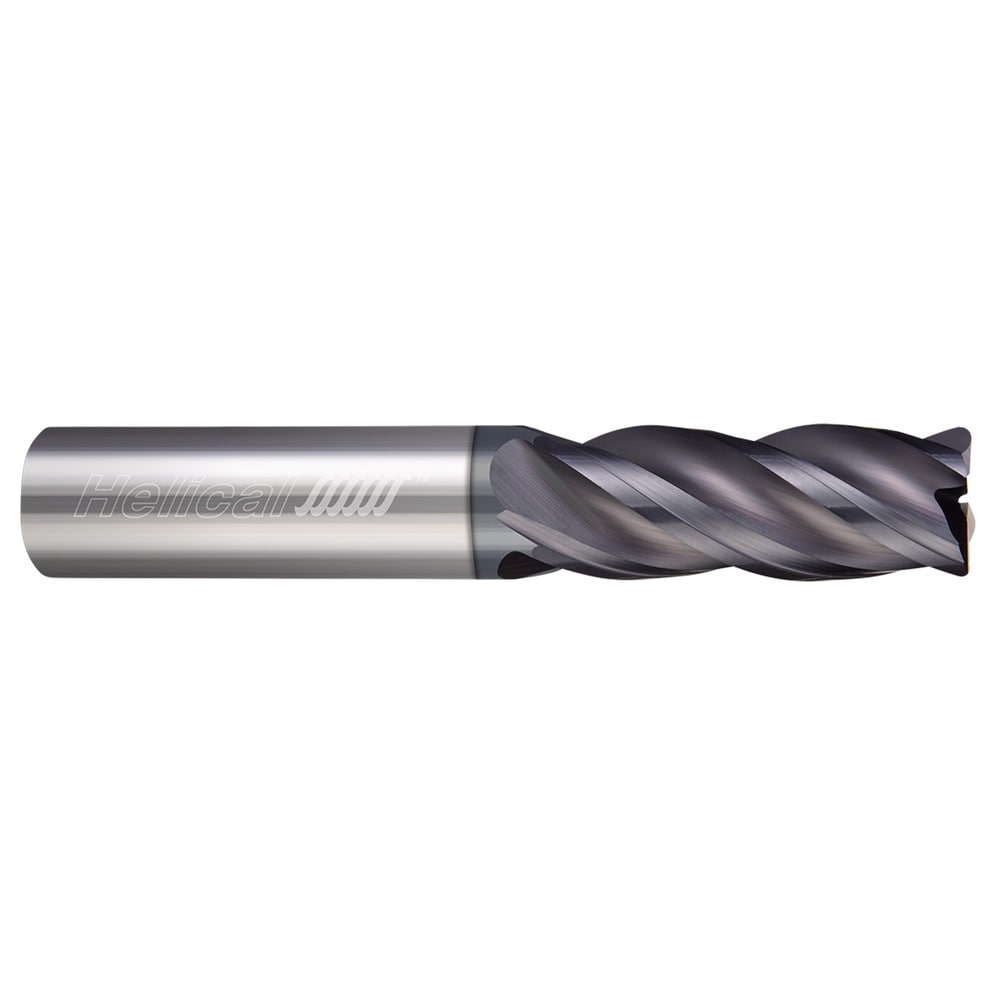

Brand: Helical Solutions / Part #: 31122
Item #: 99313520
Brand: Helical Solutions
Model #: 31122
Product Specifications
| Mill Diameter (Inch) | 7/32 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Coating/Finish | Aplus |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (Inch) | 2-1/2 |
| Length of Cut (Inch) | 7/16 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.2187 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.4375 |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Series | End Mills for Steels - 4 Flute - Corner Radius - Variable Pitch |
