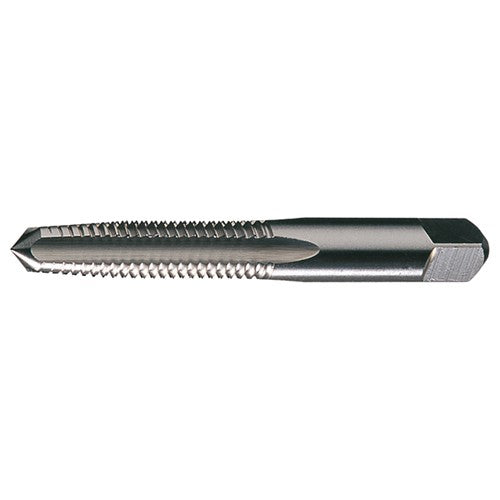

M24x3.0 4 Flute D8 HSS Standard Taper Chamfer General Purpose Hand Tap- Bright
Item #: CD73C54907
Brand: Cleveland
Model #: C54907
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M24 |
| Chamfer | Taper |
| Thread Pitch (TP) | 3 mm |
| Coating | Bright |
| Overall Length (OAL) | 4.9062 |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 56.36 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 19.3 mm |
| Style | Taper |
| Flute Count (NOF) | 4 |
| Shank Type | Round w/ Drive Square |
| Application | General Purpose |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Length Group | 1.5D |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | D8 | 6H |
| Series/List # | 1001 |
| Tool Type | Hand Tap |
| Thread Size | M24 × 3 |
