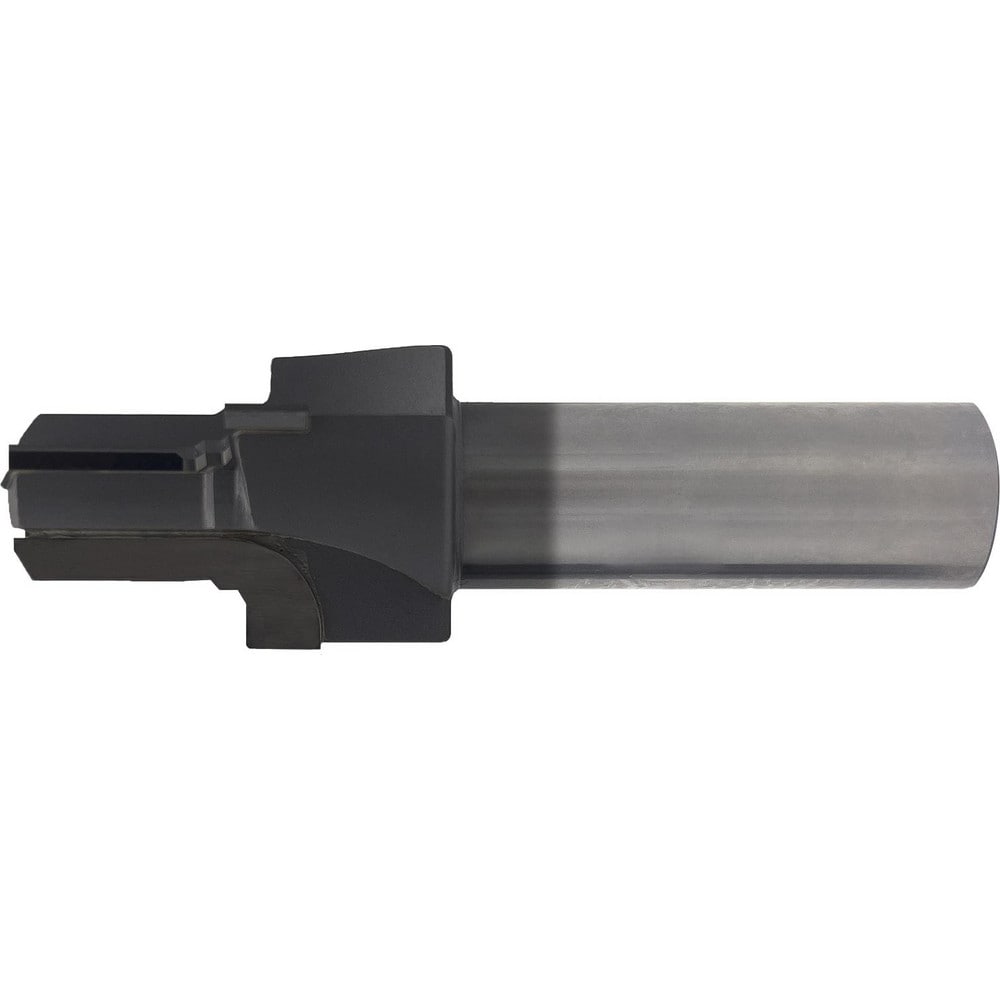

Brand: Scientific Cutting Tools / Part #: AS5202-03R-X3A
Item #: 99253718
Brand: Scientific Cutting Tools
Model #: AS5202-03R-X3A
Product Specifications
| Spotface Diameter (Decimal Inch) | 0.8050 |
| Tube Outside Diameter Compatibility (Inch) | 3/16 |
| Pilot Type | Reamer |
| Port Thread Size (Decimal Inch) | 3/8-24 |
| Tool Material | Carbide-Tipped |
| Tube Dash Number | 3.000 |
| Minimum Pilot Diameter (Decimal Inch) | 0.3390 |
| Pilot Length | 0.5320 |
| Overall Length (Inch) | 3 |
| Number Of Flutes | 3 |
| Standards | AS5202; MS33649 |
| Shank Type | Straight |
| Identification Groove | No |
| Series | Coolant Through |
| Seal Angle | 30 |
| Thread Type | UNJF |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 1/2 |
| Shank Length (Decimal Inch) | 1.7500 |
| Maximum Pilot Diameter (Decimal Inch) | 0.3925 |
| Head Length (Decimal Inch) | 1.2500 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | AlTiN |
