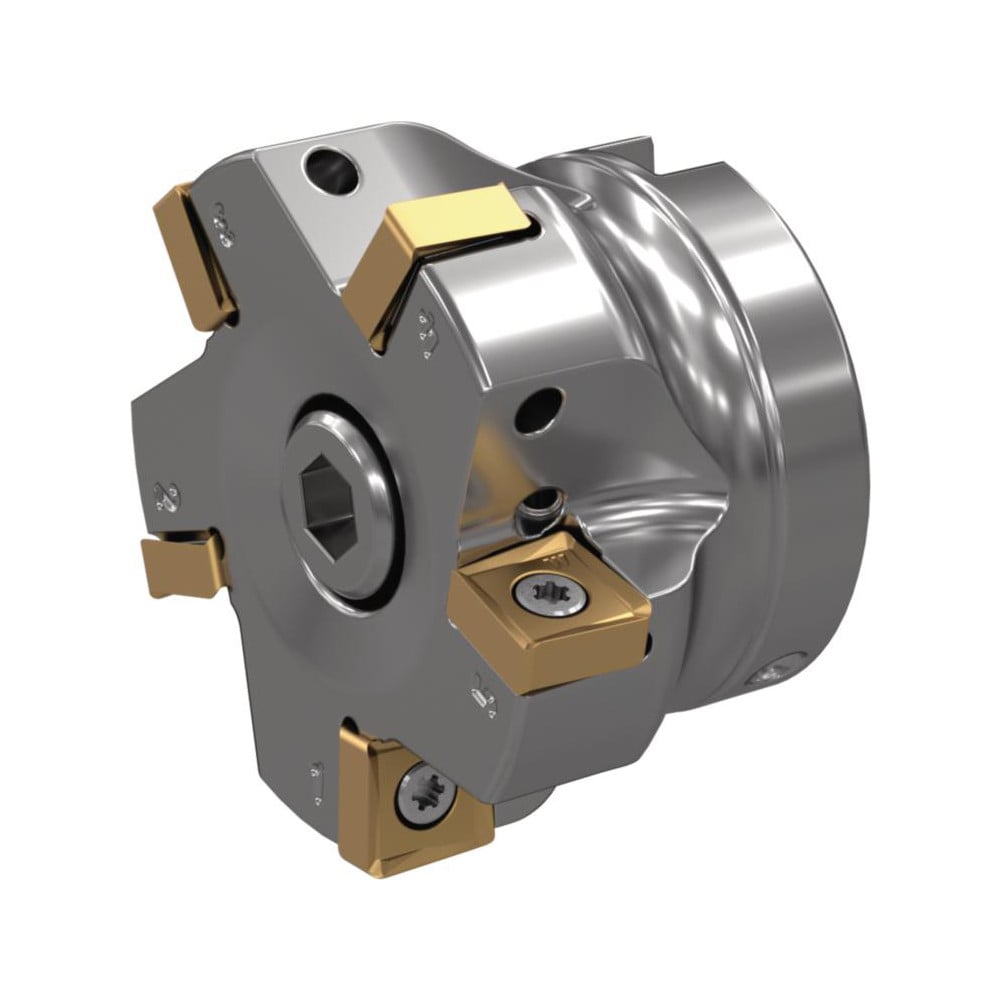

Brand: Widia / Part #: 6596111

Brand: Widia / Part #: 6596111


Item #: 09785130
Brand: Widia
Model #: 6596111

Product Specifications

Minimum Cutting Diameter (mm) 63.00
Maximum Cutting Diameter (mm) 63.00
Maximum Depth of Cut (mm) 9.80
Arbor Hole Diameter (mm) 22.00
Compatible Insert Size Code SNHX1204..
Maximum Ramping Angle 0
Cutter Style VSM
Cutting Direction Right Hand
Insert Holding Method Screw
Lead Angle 90
Rake Negative (Radial); Positive (Axial)
Rake Angle -12.900
Series VSM890
Maximum Body Diameter (mm) 60.28
Overall Height (Mm - 5 Decimals) 40.00000
Keyway Width (mm) 10.48
Hub Diameter (mm) 49.000
Maximum RPM 20800.000
Tool Application Milling; Slotting
Tool Performance General Purpose
Primary Workpiece Material Universal
Number of Adjustable Pockets 0
ISO Number VSM890D063Z07S22SN12
Coolant Hole Diameter (Decimal Inch) 0.1181
Complete Insert Compatibility SNHX120408PNERMM
Toolholder Material Steel
Manufacturers Catalog Number VSM890D063Z07S22SN12
Coolant Through Yes
Number Of Cutter Inserts 7
Number Of Flutes 7
$527.51
