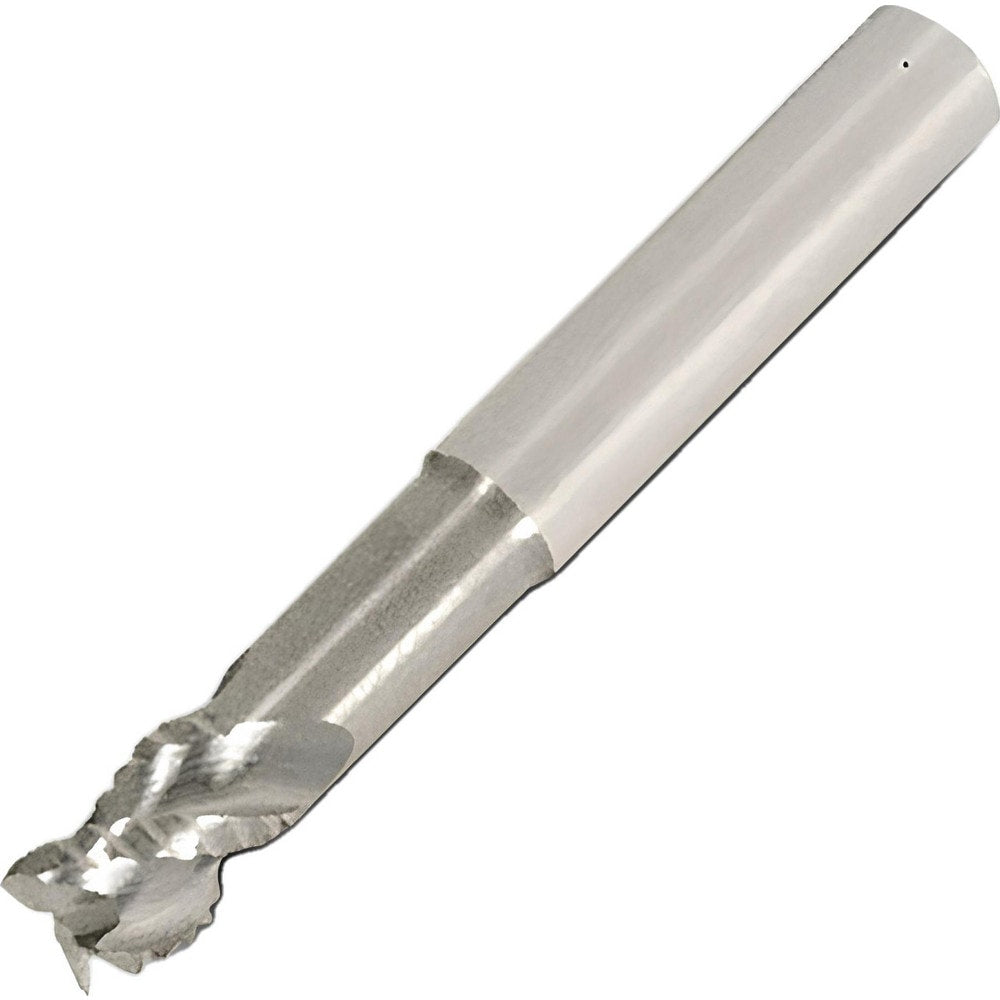

Brand: Ingersoll Cutting Tools / Part #: 2944107
Item #: 99509143
Brand: Ingersoll Cutting Tools
Model #: 2944107
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating/Finish | Bright/Uncoated |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 3 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.5000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5620 |
| Length Type | Medium |
| Flute Type | Helical |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Centercutting | No |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Neck Diameter (Decimal Inch) | 0.6250 |
| Reach Length (Decimal Inch) | 0.5620 |
| Minimum Helix Angle | 45 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Material Grade | IN05S |
| Series | 46J_RD08 |
