Brand: Widia / Part #: 3879711
Item #: 98373277
Brand: Widia
Model #: 3879711
Product Specifications
| Cutting Direction | Left Hand |
| Hand of Holder | Left Hand |
| Compatible Insert Size Code | 2507.. |

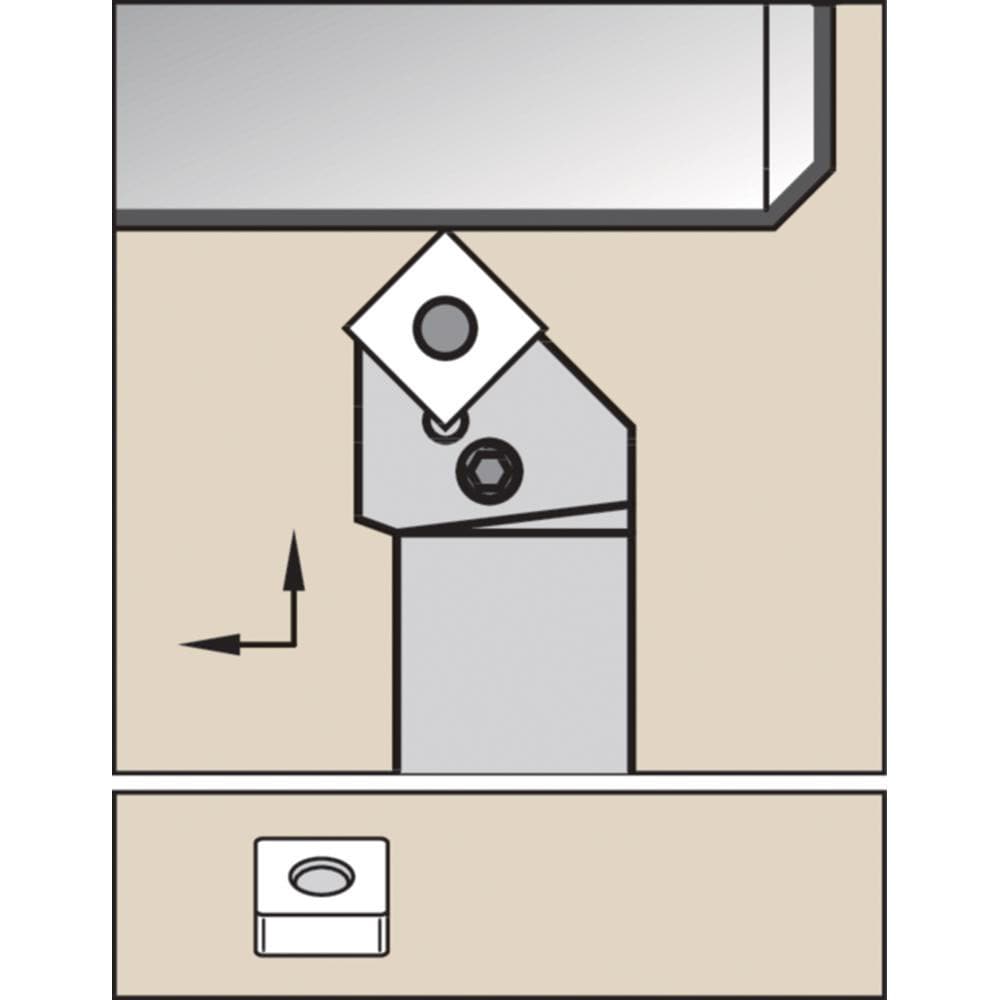

| Toolholder Style | PSSNL |
| Rake | Negative |
| Rake Angle | -8 (Radial);0 (Axial) |
| Multi-use Tool | Yes |
| Lead Angle | 45.000 |
| Insert Holding Method | Pin |
| Insert Compatibility | SN..2507.. |
| Shank Width (mm) | 40.00 |
| Shank Height (mm) | 40.00 |
| Series | PSSN |
| Overall Length (mm) | 267.4500 |
| Cutting Tool Application | Facing; Copying; Turning |
| Head Length (mm) | 50.04 |
| Back of Bar to Cutting Edge (mm) | 50.00 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 25.40 |
| Toolholder Material | Steel |
| ISO Number | PSSNL4040S25 |
| Complete Insert Compatibility | SN.. |
| Insert Thickness | 7.94 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 25.40 |
