Brand: Widia / Part #: 2951393
Item #: 02768331
Brand: Widia
Model #: 2951393
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.9800 |
| Maximum Bore Depth (Decimal Inch) | 2.2500 |
| Toolholder Style | SDUCL |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (Inch) | 10 |
| Compatible Insert Size Code | DC..3252 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Left Hand |
| Rake Angle | -5.000 |
| Lead Angle | -3.000 |
| Series | A-SDUC |
| Insert Inscribed Circle (Inch) | 3/8 |
| Compatible Insert Thickness (Decimal Inch) | 0.1563 |
| Compatible Insert Thickness (mm) | 3.97 |
| Multi-use Tool | Yes |

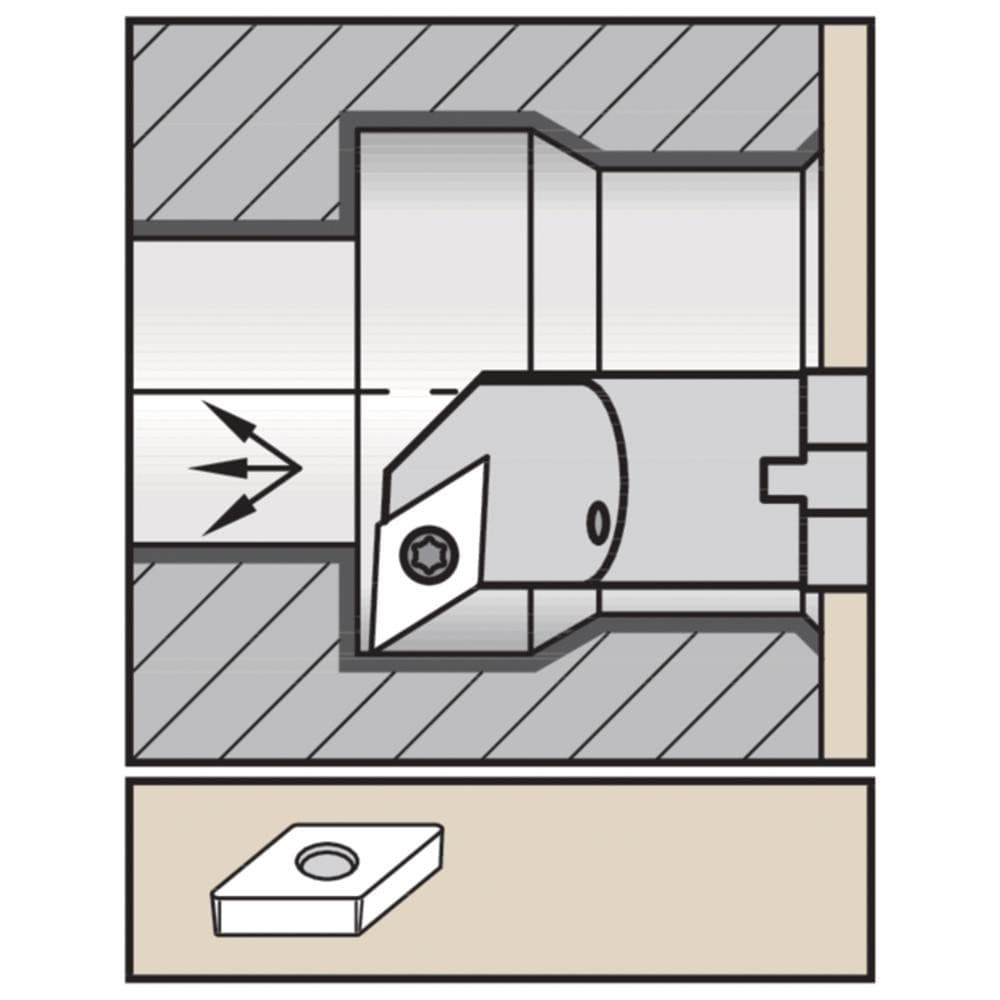

| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9370 |
| Center to Cutting Edge (Decimal Inch) | 0.5620 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | A12SSDUCL3 |
| Radial Rake | 0 |
| Coolant Through | Yes |
