Brand: Widia / Part #: 3032549
Item #: 97575583
Brand: Widia
Model #: 3032549
Product Specifications
| Cutting Direction | Neutral |
| Hand of Holder | Neutral |
| Compatible Insert Size Code | 1204 |
| Toolholder Style | CRDNN |
| Rake | Negative |
| Rake Angle | 0 (Axial);0 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 9.000 |
| Insert Holding Method | Clamp |
| Insert Compatibility | RN.N1204 |
| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Series | CRDN |
| Overall Length (mm) | 150.0000 |

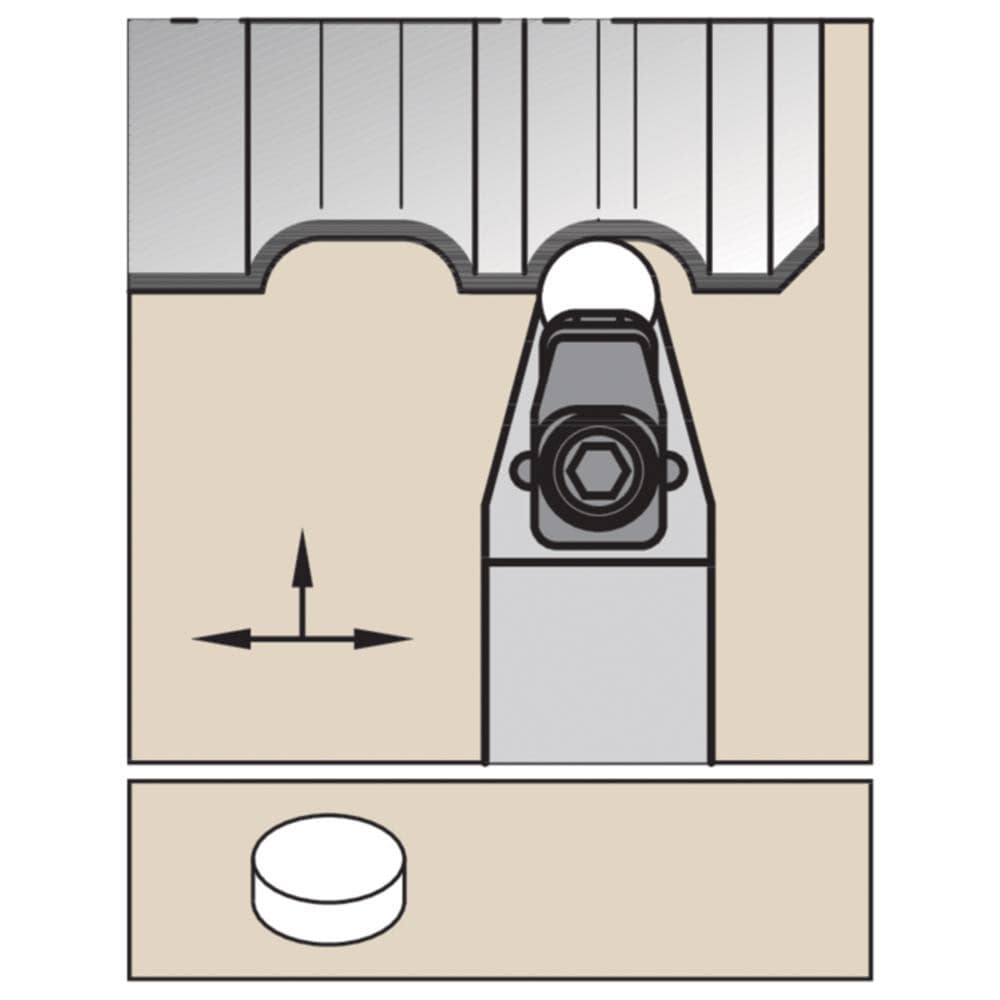

| Cutting Tool Application | Facing; Copying; Turning |
| Head Length (mm) | 30.00 |
| Back of Bar to Cutting Edge (mm) | 12.50 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 12.70 |
| Toolholder Material | Steel |
| ISO Number | CRDNN2525M12MN4 |
| Complete Insert Compatibility | RN.N |
| Insert Thickness | 4.76 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 12.70 |
