Brand: Widia / Part #: 3032691
Item #: 97482905
Brand: Widia
Model #: 3032691
Product Specifications
| Cutting Direction | Right Hand |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 1207.. |

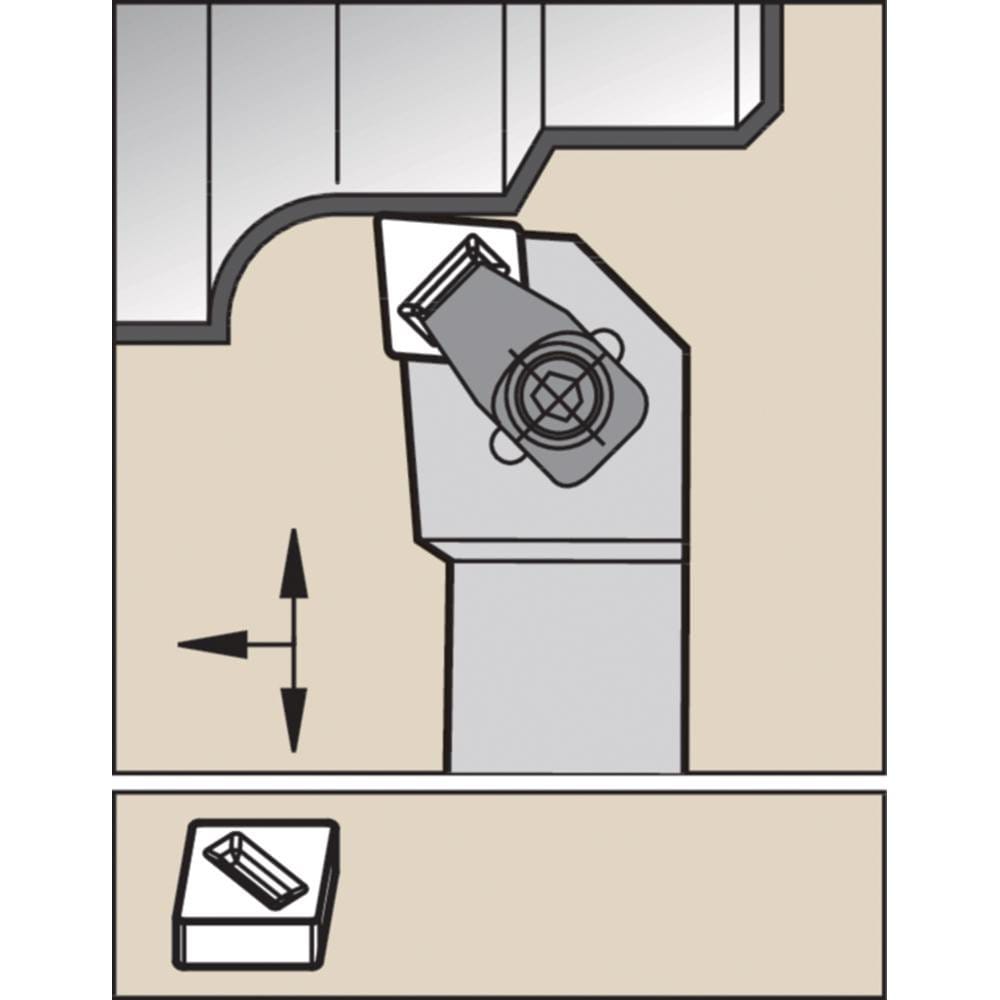

| Toolholder Style | CCLNR |
| Rake | Negative |
| Rake Angle | -6 (Axial);-6 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 95.000 |
| Insert Holding Method | Clamp |
| Insert Compatibility | CN.X1207.. |
| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Series | CCLN |
| Overall Length (mm) | 150.0000 |
| Cutting Tool Application | Facing; Copying; Turning |
| Head Length (mm) | 32.00 |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 12.70 |
| Toolholder Material | Steel |
| ISO Number | CCLNR2525M12MX7 |
| Complete Insert Compatibility | CN.X |
| Insert Thickness | 7.94 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 12.70 |
