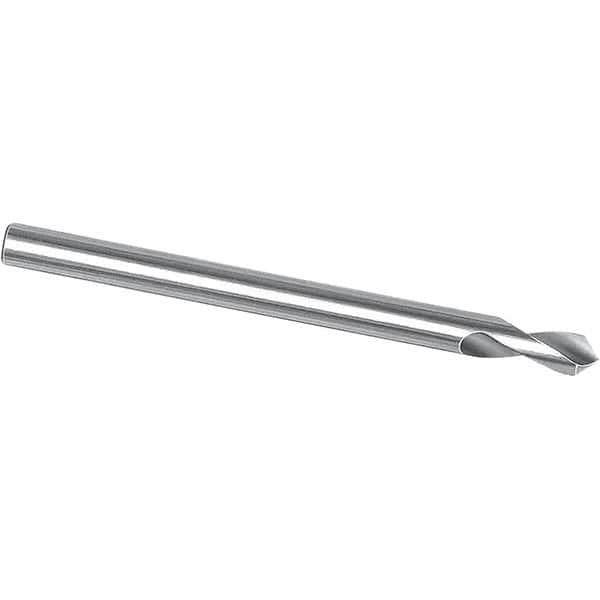

Magafor - 20mm Body Diam, 90°, 200mm OAL, Solid Carbide Spotting Drill
Item #: 95431474
Brand: Magafor
Model #: 88819720000
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Body Diameter (mm) | 20.00 |
| Drill Point Angle | 90 |
| Spotting Drill Material | Solid Carbide |
| Spotting Drill Finish/Coating | AlTiN |
| Overall Length (mm) | 200.00 |
| Flute Length (mm) | 40.00 |
| Flute Length (Inch) | 1-5/8 |
| Shank Diameter (mm) | 20.0000 |
| Drill Bit Grade | High Performance |
| Length Designation | Long |
| Cutting Direction | Right Hand |
| Tool Application | Centering; Chamfering; Spot Drilling |
| Material Application | Hard Alloy |
| Series/List | 8197 |
