Brand: Widia / Part #: 4171721

Brand: Widia / Part #: 4171721


Item #: 95873576
Brand: Widia
Model #: 4171721

Product Specifications

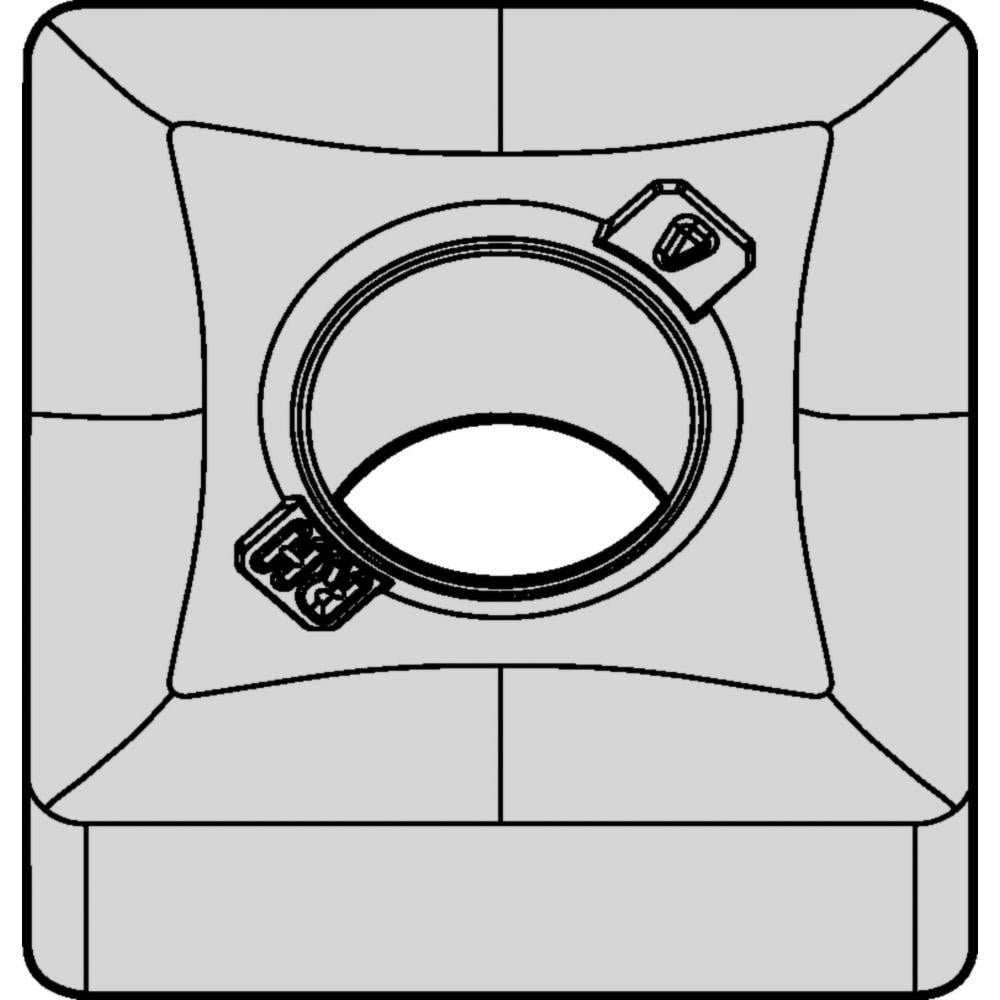

Insert Style SNMG
Insert Shape Code S
Insert Size Code 642
Insert Shape Square
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WP35CT
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.3122
Maximum Depth of Cut (Decimal Inch) 0.3750
Inscribed Circle (Decimal Inch) 0.7500
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.2500
Clearance Code N
Tolerance Code M
Included Angle 90.00
Relief Angle 0.000
Series SNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.7500
Number Of Cutting Edges 8
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Ansi Code SNMG642RH
Iso Code SNMG190608RH
Manufacturers Catalog Number SNMG642RH
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker RH
Style SNMG
Width (Decimal Inch - 4 Decimals) 0.7500
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$16.18
