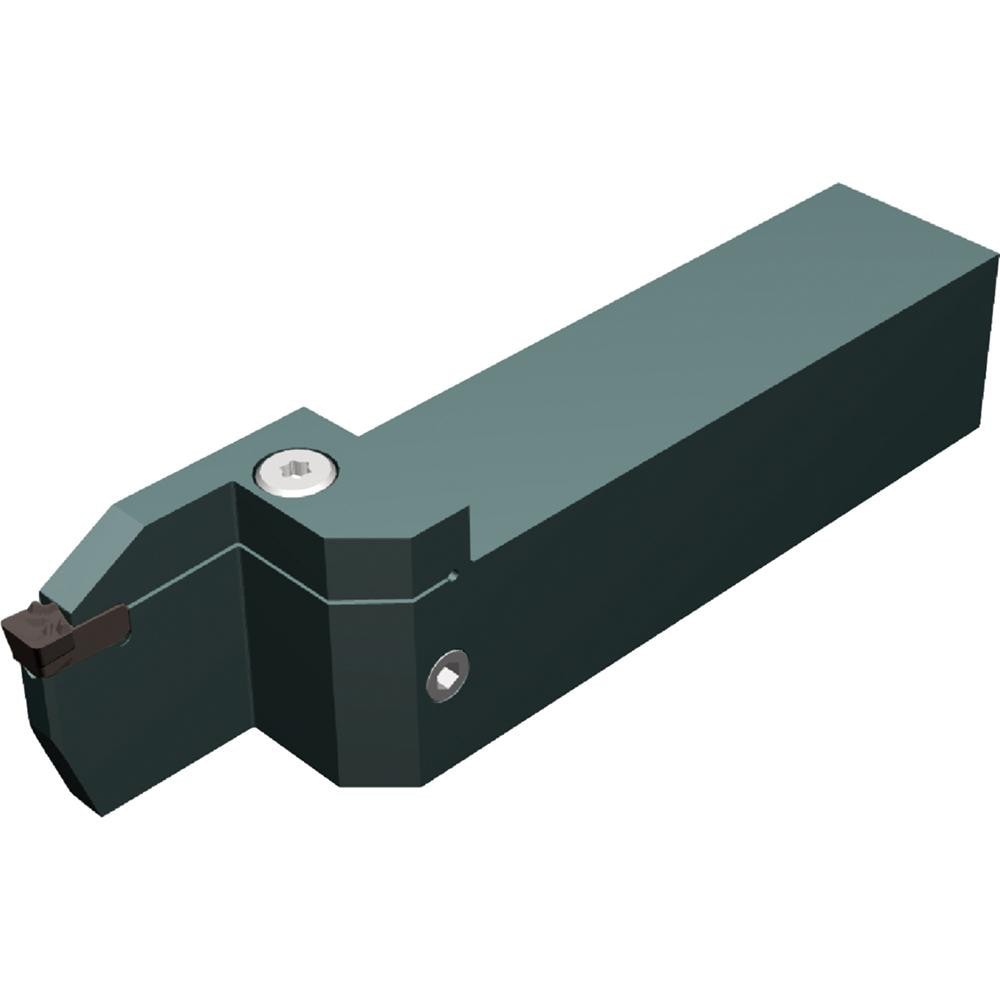

Brand: Widia / Part #: 6461998
Item #: 98295488
Brand: Widia
Model #: 6461998
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Hand of Holder | Left Hand |
| Maximum Groove Width (Decimal Inch) | 0.3940 |
| Minimum Groove Width (Decimal Inch) | 0.3937 |
| Toolholder Style | WGCSM |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 1000 |
| Insert Compatibility | WG1000M10P08 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Length (Decimal Inch) | 3.8350 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Series | WGC |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Tool Application | Grooving; Facing; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2760 |
| Head Height (mm) | 44.000 |
| Head Length (Decimal Inch) | 2.1654 |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 10.0 |
| Coolant Through | Yes |
