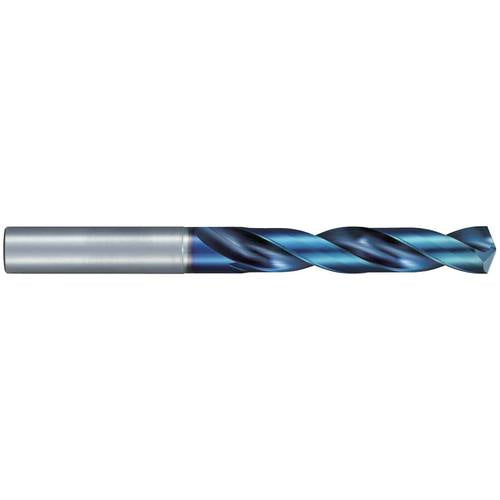

9.8 mm Dia. × 10 mm Shank × 62 mm Flute Length × 107 mm OAL, Jobber, 135°, Aqua Revo D, 2 Flute, External, Solid Carbide Drill
Item #: AC860772947
Brand: Nachi America Inc
Model #: 0772947
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9.8 mm |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3858″ |
| Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.8 mm |
| Measurement Type | Metric |
| Length Group | Jobber |
| Series/List # | L9862 |
| Coating | Aqua Revo D |
| Usable Length (LU) | 62 mm |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Length Chip Flute (LCF) | 62 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Overall Length (OAL) | 107 mm |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 135 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 24-30 Degrees |
