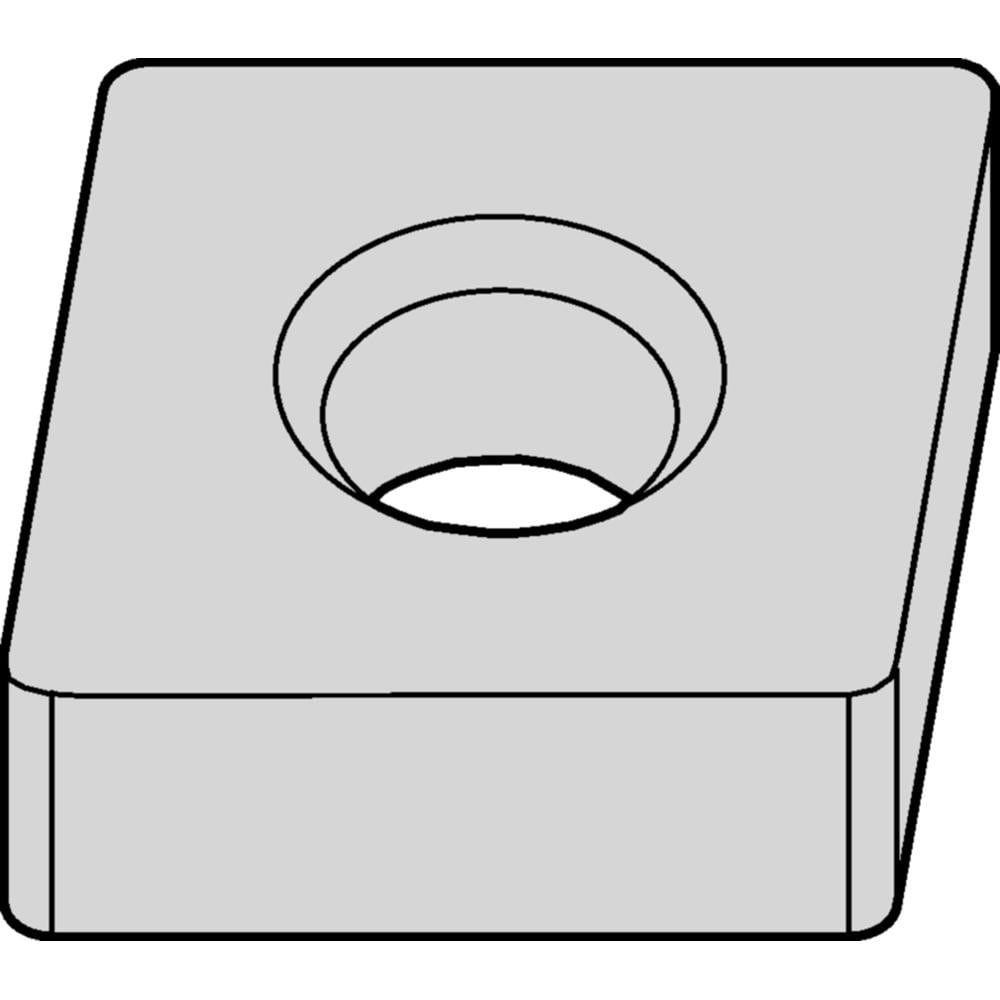

Brand: Widia / Part #: 4171866

Brand: Widia / Part #: 4171866


Item #: 93304855
Brand: Widia
Model #: 4171866

Product Specifications

Insert Style CNMA
Insert Shape Code C
Insert Size Code 434
Insert Shape Diamond
Coating/Finish TiCN; TiN; Al2O3
Manufacturer Grade WK20CT
Corner Radius (Decimal Inch) 0.0630
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.2539
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series CNMA
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.5077
Number Of Cutting Edges 4
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Secondary Workpiece Material Steel
Secondary Workpiece Material Code P
Ansi Code CNMA434
Iso Code CNMA120416
Manufacturers Catalog Number CNMA434
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker None
Style CNMA
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$7.14
