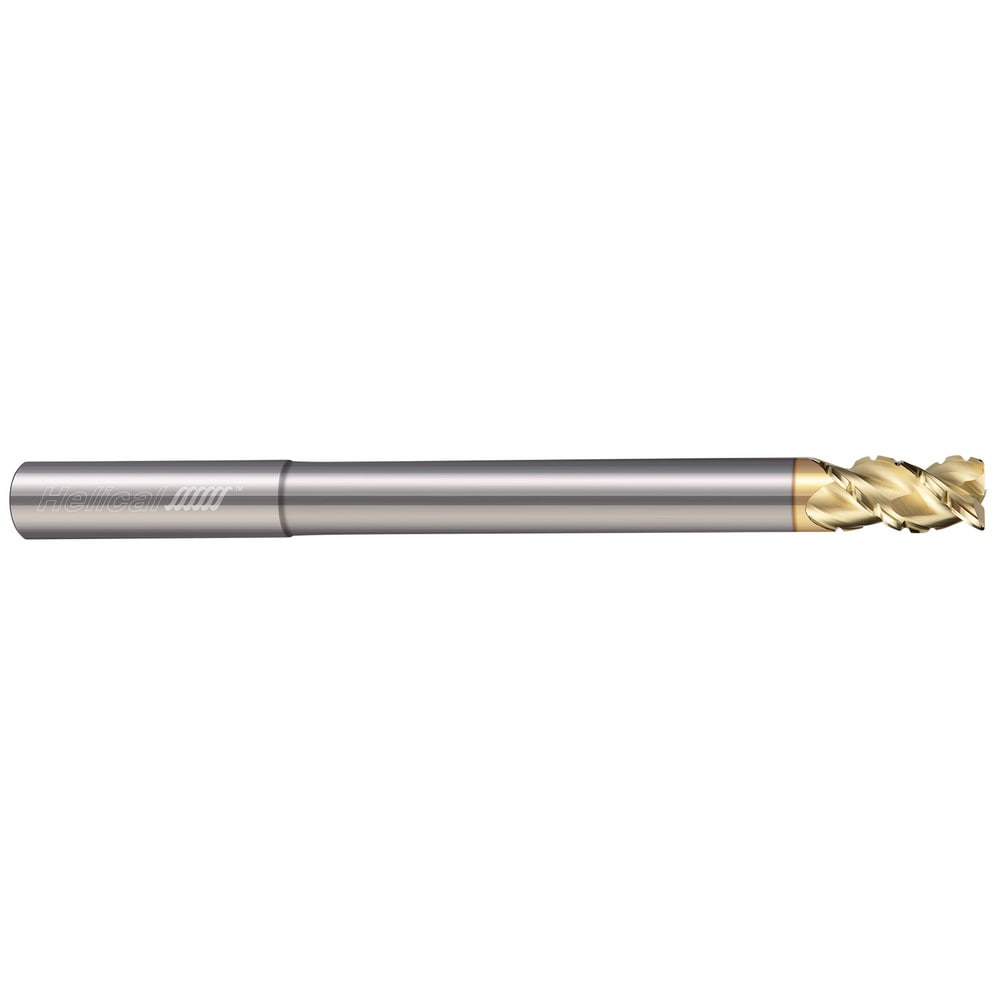

Brand: Helical Solutions / Part #: 86627
Item #: 90405036
Brand: Helical Solutions
Model #: 86627
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Coating/Finish | Zplus |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 3 |
| Single Or Double End | Single |
| Overall Length (Inch) | 6 |
| Length of Cut (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Overall Length (Decimal Inch) | 6.0000 |
| Chipbreaker | Yes |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Extended Reach | Yes |
| Shank Type | Round |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Reach Length (Decimal Inch) | 4.1250 |
| Reach Length (Inch) | 4-1/8 |
| Series | End Mills for Aluminum - 3 Flute - Corner Radius - 45? Helix - Chipbreaker Rougher - Reduced Neck |
