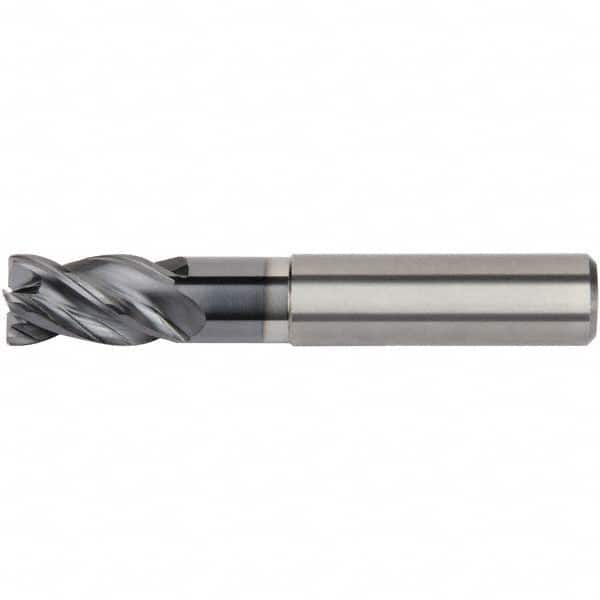

Corner Chamfer End Mill: 0.9843″ Dia, 4 Flute, Solid Carbide 121 mm OAL, 25 mm Shank Dia, 36 ° Helix, AlTiN Coated, Centercutting
Item #: 99990418
Brand: Kennametal
Model #: 6676347
Product Specifications
| Mill Diameter (Decimal Inch) | 0.9843 |
| Chamfer Width (mm) | 0.35 |
| Mill Diameter (mm) | 25.00 |
| Chamfer Angle | 45 |
| Length of Cut (mm) | 45.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Chamfer |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | 36 |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (mm) | 25.00 |
| Neck Diameter (mm) | 24.00 |
| Reach Length (mm) | 75.00 |
| Overall Length (mm) | 121.00 |
| Minimum Helix Angle | 36.00 |
| Maximum Helix Angle | 39.00 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | KCPM15 |
| Series | H1TE |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
