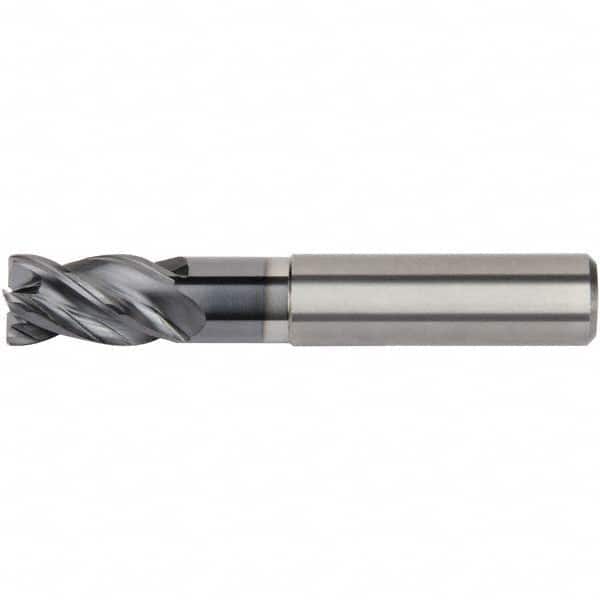

Corner Radius End Mill: 0.9843″ Dia, 4 Flutes, Solid Carbide 36 ° Helix, AlTiN Coated, Corner Radius End, Centercutting, Series H1TE
Item #: 99989808
Brand: Kennametal
Model #: 6676302
Product Specifications
| Mill Diameter (Decimal Inch) | 0.9843 |
| Mill Diameter (mm) | 25.00 |
| Corner Radius (mm) | 3.00 |
| Length of Cut (mm) | 37.50 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | 36 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (mm) | 25.00 |
| Neck Diameter (mm) | 24.00 |
| Overall Length (mm) | 135.00 |
| Minimum Helix Angle | 36.00 |
| Maximum Helix Angle | 39.00 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | KCSM15 |
| Series | H1TE |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
