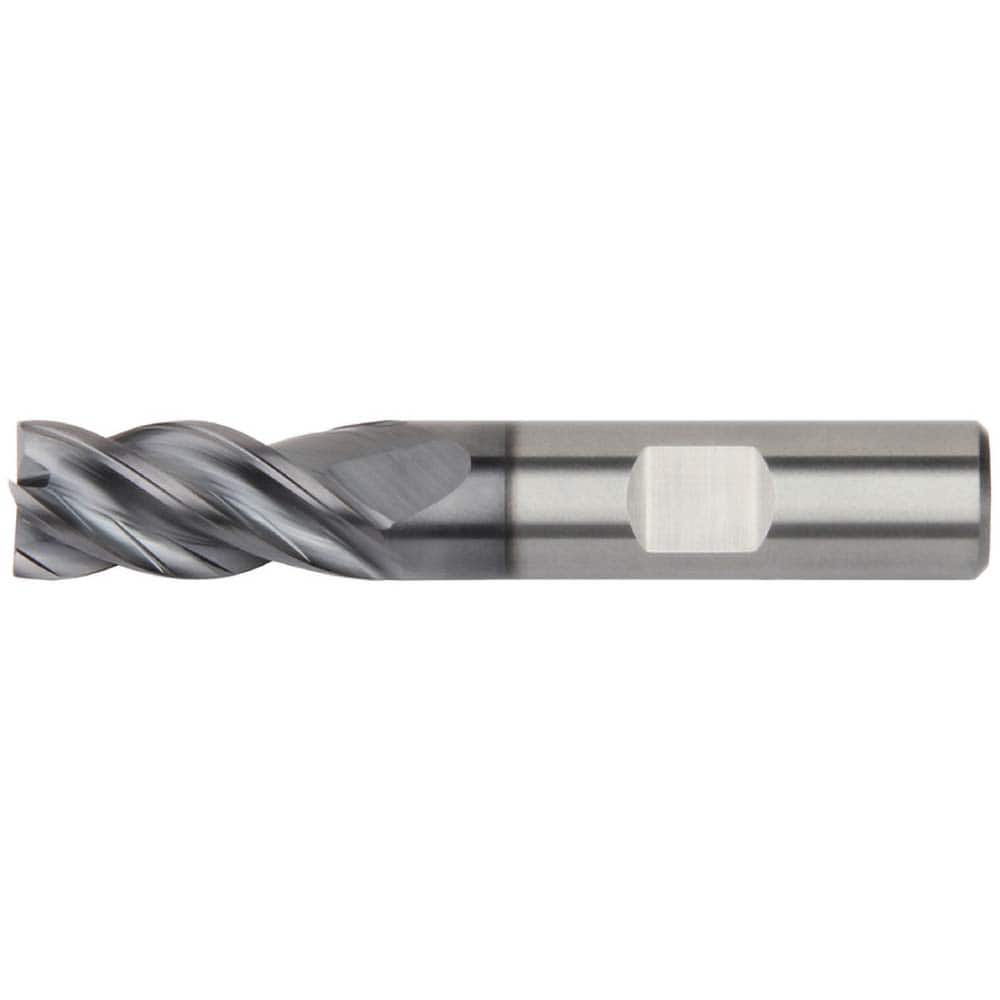

Corner Chamfer End Mill: 1″ Dia, 4 Flute, 0.02″ Chamfer Width, Solid Carbide 4-1/2″ OAL, 1″ Shank Dia, 36 ° Helix, AlTiN Coated, Centercutting
Item #: 99986333
Brand: Kennametal
Model #: 6677061
Product Specifications
| Mill Diameter (Decimal Inch) | 1.0000 |
| Chamfer Width (Decimal Inch) | 0.0200 |
| Mill Diameter (Inch) | 1 |
| Length of Cut (Inch) | 1-1/2 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Chamfer |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | 36 |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 4-1/2 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | KCSM15 |
| Series | H1TE |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
