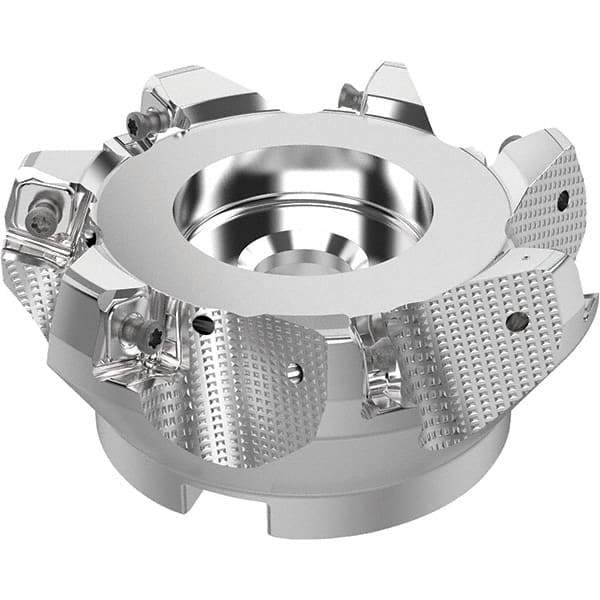

Seco - 100mm Cut Diam, 32mm Arbor Hole, 8mm Max Depth of Cut, 71° Indexable Chamfer & Angle Face Mill - 7 Inserts, SN.. Insert, Right Hand Cut, 7 Flutes, Through Coolant, Series R220.56
Item #: 99877292
Brand: Seco
Model #: 03241898
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Lead Angle | 71 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SN.. |
| Series | R220.56 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | R220.56 |
| Number of Flutes | 7 |
| Cutting Rake Angle | -6 |
| Hub Diameter (mm) | 77.00 |
| Keyway Width (mm) | 14.40 |
| Maximum Body Diameter (Decimal Inch) | 4.1340 |
| Maximum RPM | 6000 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Overall Diameter (Decimal Inch) | 4.1340 |
| Complete Insert Compatibility | SN..14..ZNTR |
| Toolholder Material | Steel |
