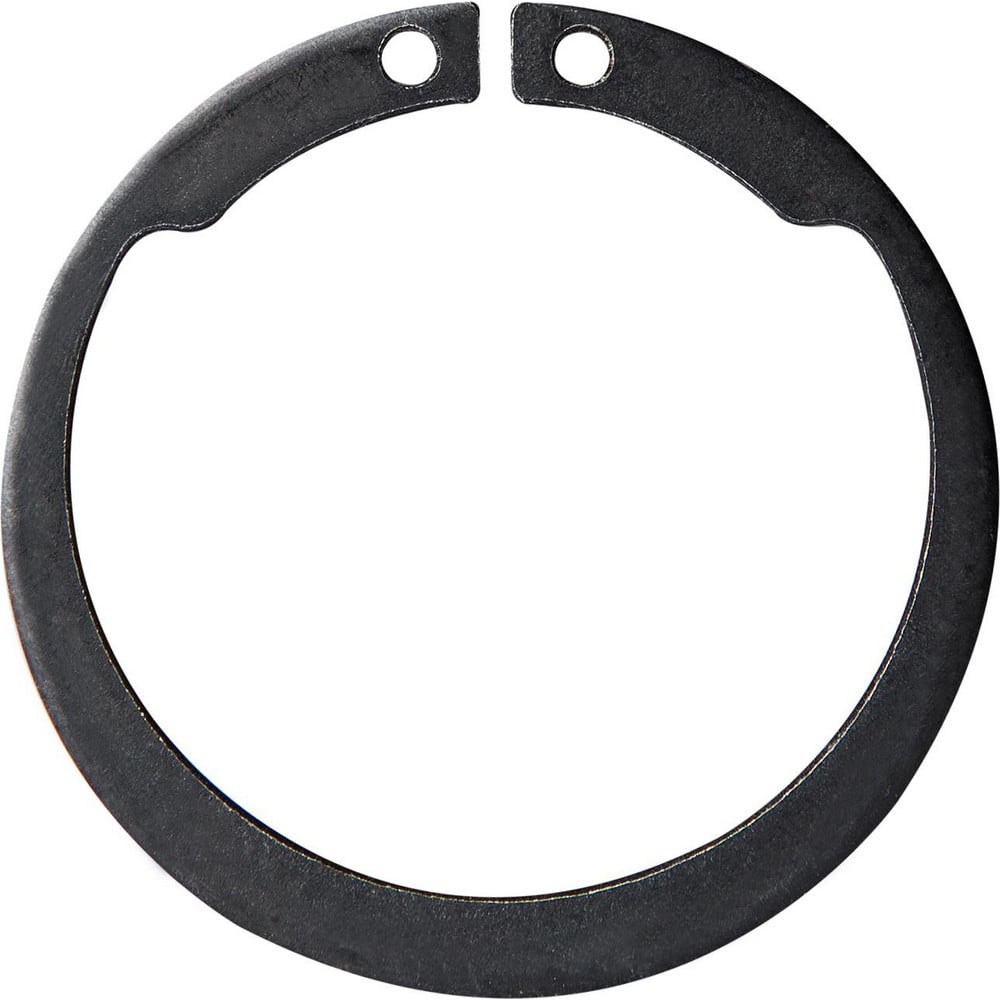

External Retaining Rings; Ring Type: SHI Style; Groove Diameter: 2.602; Groove Diameter Tolerance: +0.005/-0.000; Free Diameter: 2.543; Free Outside Diameter: 0; Material: Spring Steel; Finish: Phosphate; Material: Spring Steel; Groove Width Tolerance: +0
Item #: 99703514
Brand: Rotor Clip
Model #: SHI-275ST PA
Product Specifications
| Ring Type | SHI Style |
| Groove Diameter | 2.602 |
| Groove Diameter Tolerance | +0.005/-0.000 |
| Free Diameter | 2.543 |
| Free Outside Diameter | 0 |
| Material | Spring Steel |
| Finish | Phosphate |
| Groove Width Tolerance | +0.005/-0.000 |
| Groove Depth | 0.074 |
| Ring Thickness Tolerance | +/-0.003 |
| Thrust Load Capacity | 20402 |
| Groove Width (Decimal Inch) | 0.1030 |
| Ring Thickness (Decimal Inch) | 0.0930 |
| Free Diameter Tolerance (Decimal Inch) | +.015/-.025 |
