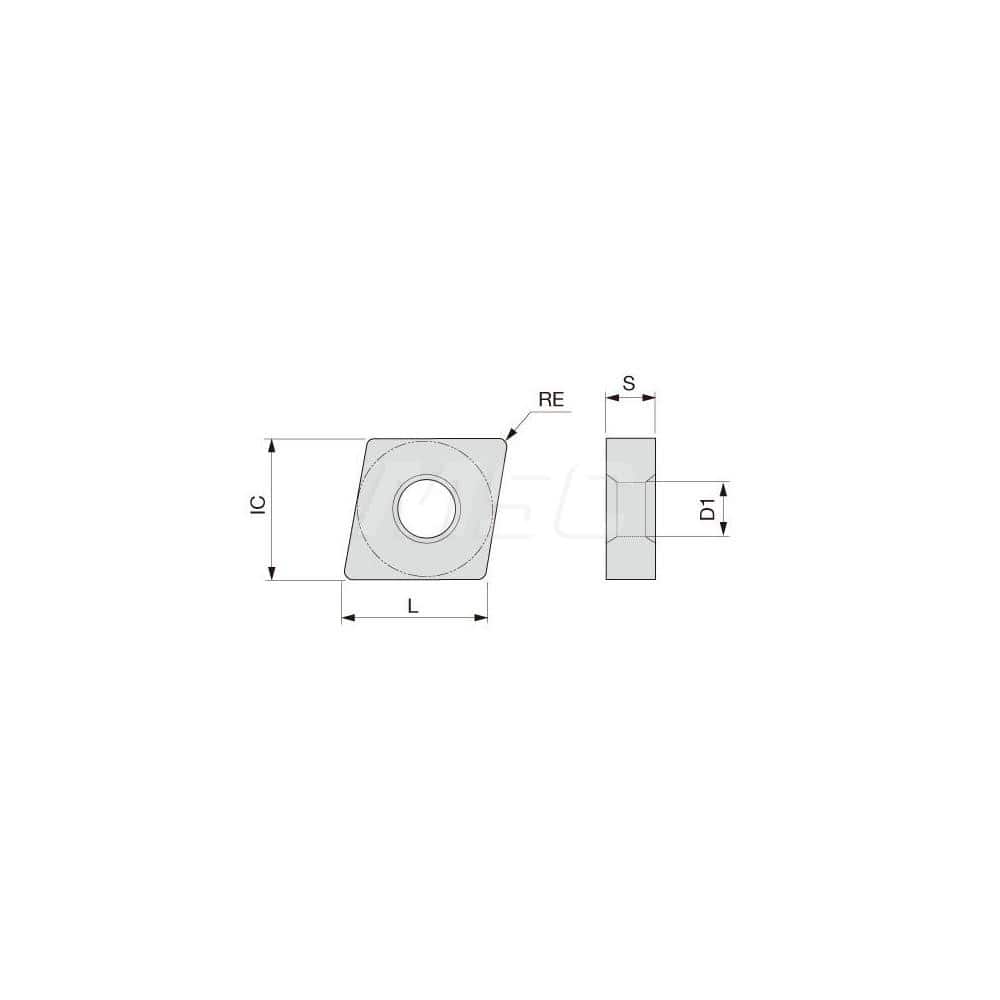

Turning Insert: CNMG543CM T5105, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 5/8″ Inscribed Circle, 0.0470″ Corner Radius, 80.0 ° N/A Diamond, Series CNMG
Item #: 99638579
Brand: Tungaloy
Model #: 6850154
Product Specifications
| Insert Style | CNMG |
| Insert Size Code | 543 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T5105 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | CNMG |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | CNMG543CMT5105 |
| Iso Code | CNMG160612-CM T5105 |
| Chip Breaker | CM |
| Coating/Finish | TiCN; TiN; Al2O3 |
