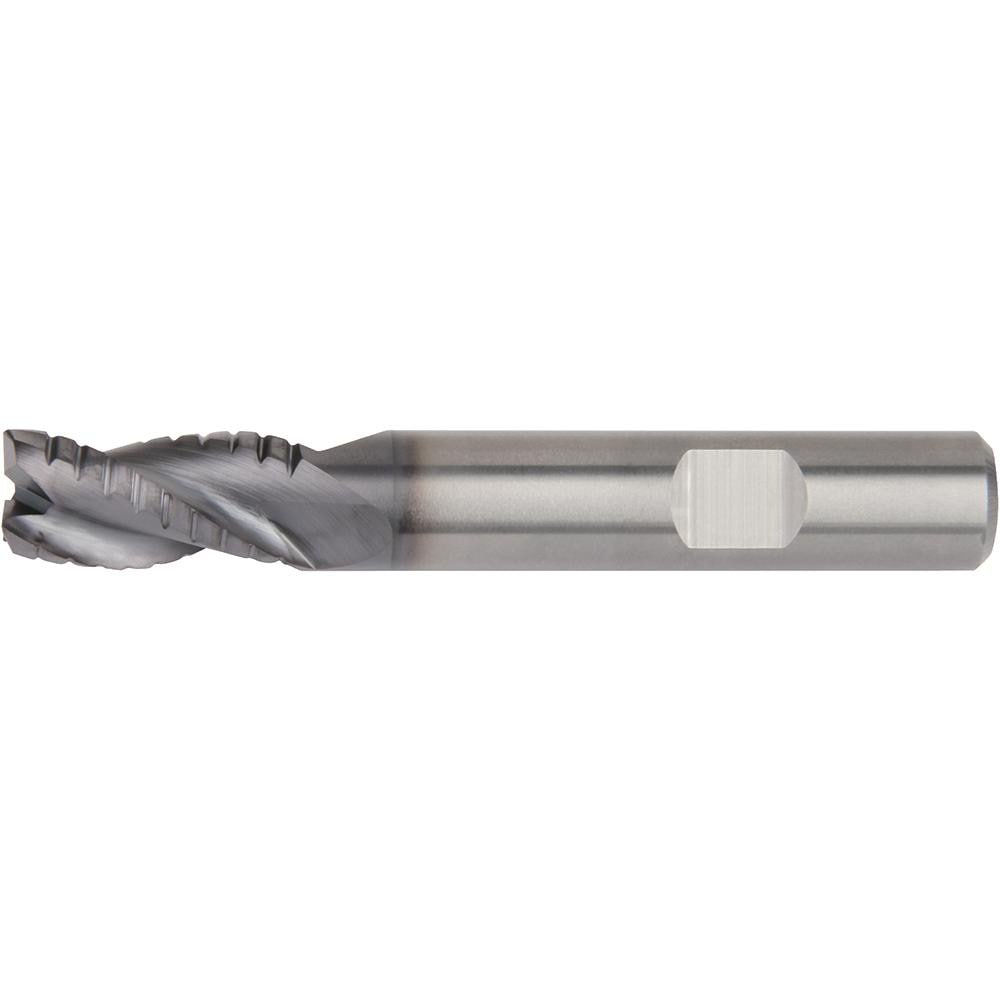

Brand: Widia / Part #: 5560705
Item #: 33972910
Brand: Widia
Model #: 5560705
Product Specifications
| Mill Diameter (mm) | 16.00 |
| Coating/Finish | AlTiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 3 |
| Overall Length (mm) | 92.00 |
| Length of Cut (mm) | 32.00 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Chipbreaker | Yes |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Material Removal Type | Roughing |
| Minimum Helix Angle | 35.00 |
| Maximum Helix Angle | 35.00 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Hard Material; Stainless Steel; High Temperature Alloy |
| Secondary Workpiece Material Code | S; H; M |
| Material Grade | WP15PE |
| Series | DQ13 |
