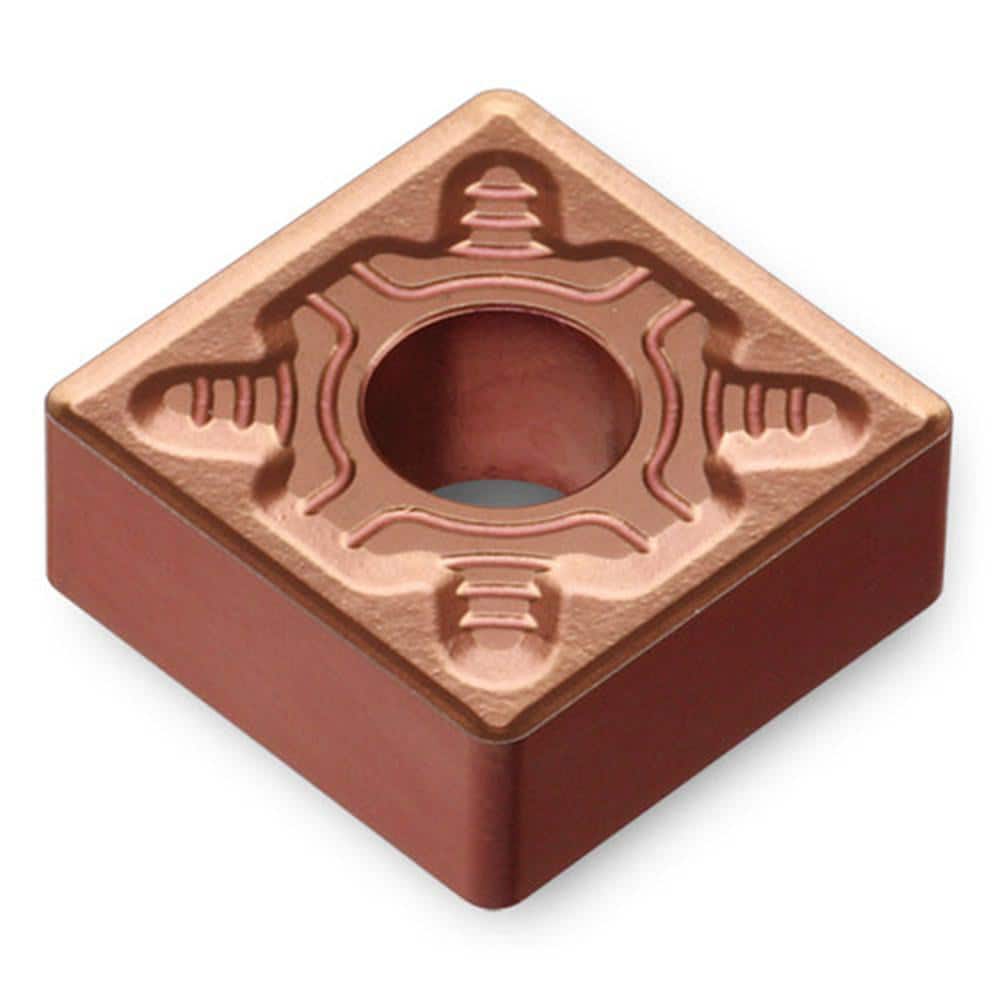

Turning Insert: SNMG644EM TT5080, Solid Carbide AlTiN & TiN Finish, Neutral, 0.6870″ Long, 3/4″ Inscribed Circle, 0.0630″ Corner Radius, 90.0 ° N/A Square, Series SNMG
Item #: 99440547
Brand: Ingersoll Cutting Tools
Model #: 5523277
Product Specifications
| Insert Style | SNMG |
| Insert Shape Code | S |
| Insert Size Code | 644 |
| Insert Shape | Square |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT5080 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Holding Method | Clamp |
| Width (Inch) | 3/4 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Series | SNMG |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6870 |
| Number Of Cutting Edges | 8 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | SNMG644EMTT5080 |
| Iso Code | SNMG190616EM TT5080 |
| Chip Breaker | EM |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Coating/Finish | AlTiN; TiN |
