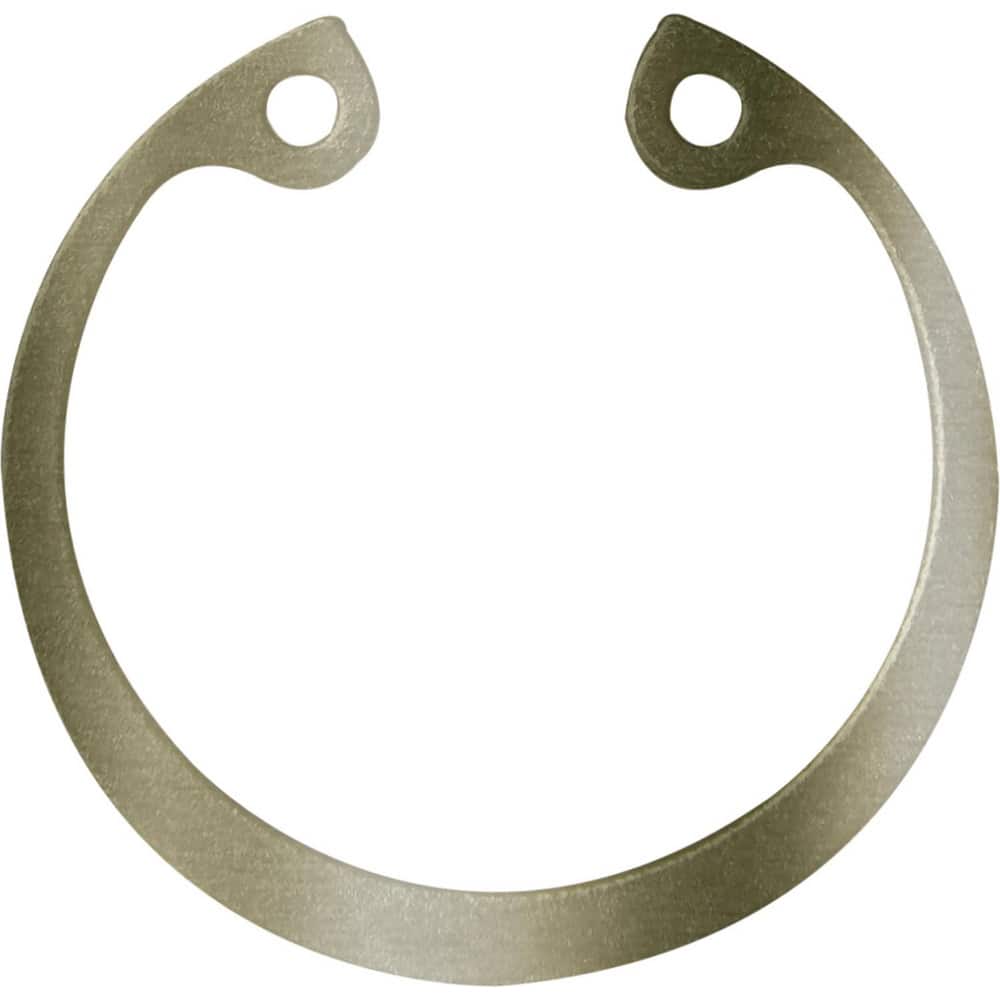

Internal Retaining Rings; Ring Type: HO Style; Groove Diameter: 2.914; Bore Diameter (Decimal Inch): 2.7500; Groove Diameter Tolerance: +0.006/-0.006; Free Diameter: 3.05; Free Outside Diameter: 0; Material: Spring Steel; Groove Width (Decimal Inch): 0.10
Item #: 99400806
Brand: Rotor Clip
Model #: HO-275ST ZD
Product Specifications
| Ring Type | HO Style |
| Groove Diameter | 2.914 |
| Bore Diameter (Decimal Inch) | 2.7500 |
| Groove Diameter Tolerance | +0.006/-0.006 |
| Free Diameter | 3.05 |
| Free Outside Diameter | 0 |
| Material | Spring Steel |
| Groove Width (Decimal Inch) | 0.1030 |
| Groove Width Tolerance | +0.005/-0.000 |
| Groove Depth | 0.082 |
| Ring Thickness (Decimal Inch) | 0.0930 |
| Ring Thickness Tolerance | +/-0.003 |
| Thrust Load Capacity | 36642 |
