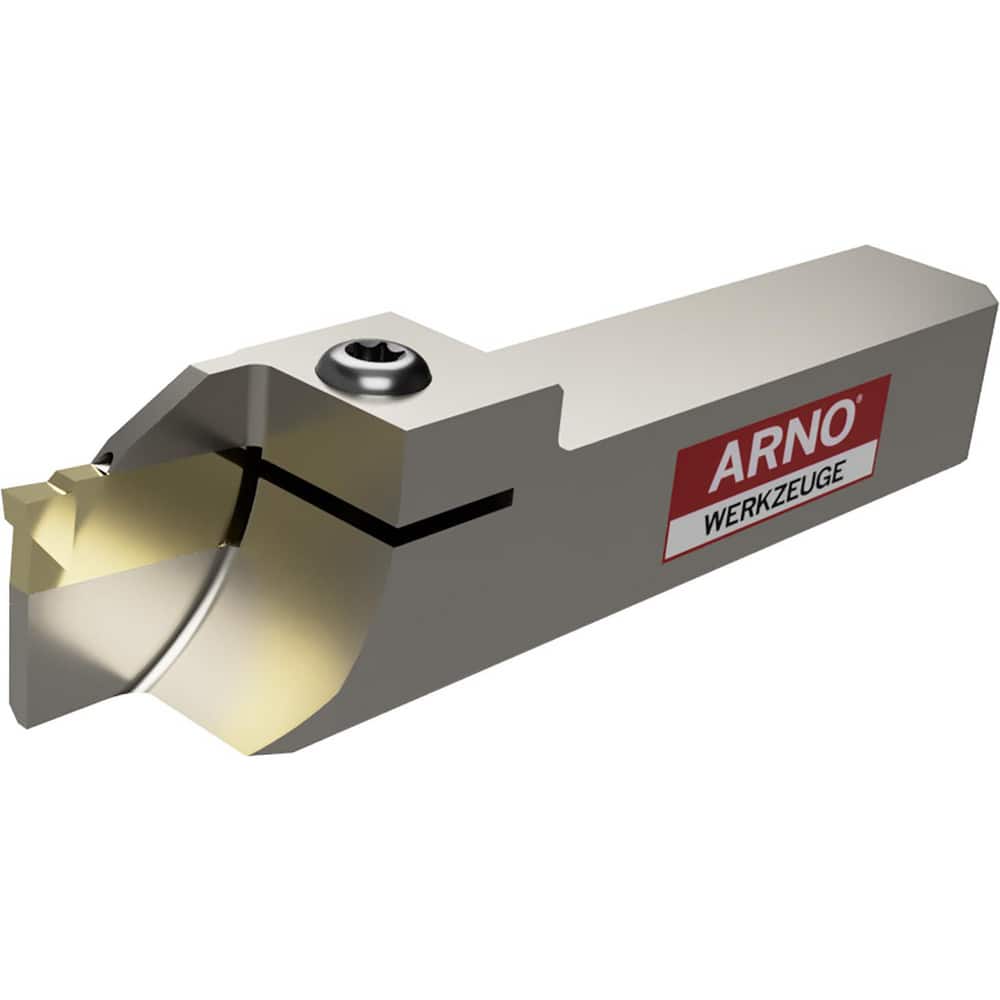

Indexable Cut-Off Toolholders; Hand of Holder: Left Hand; Maximum Depth of Cut (Decimal Inch): 0.5118; Maximum Workpiece Diameter (Decimal Inch): 1.0236; Toolholder Style: ARNO Fast Change; Multi-use Tool: No; Compatible Insert Size Code: SA24-30...; Over
Item #: 99058661
Brand: Arno
Model #: 116525
Product Specifications
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.0236 |
| Toolholder Style | ARNO Fast Change |
| Multi-use Tool | No |
| Compatible Insert Size Code | SA24-30... |
| Overall Length (Decimal Inch) | 2.7560 |
| Insert Holding Method | Screw |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Length (Decimal Inch) | 1.7717 |
| Series | SA Part & Groove for AFC |
| Cutting Tool Application | Grooving; Parting |
| Minimum Insert Width (Decimal Inch) | 0.1180 |
| Maximum Insert Width (Decimal Inch) | 0.1180 |
| Blade Width (mm) | 3.00 |
| Blade Width (Decimal Inch) | 0.1181 |
| Toolholder Material | Alloy Steel |
| Coolant Through | Low Pressure; Normal Pressure; High Pressure |
