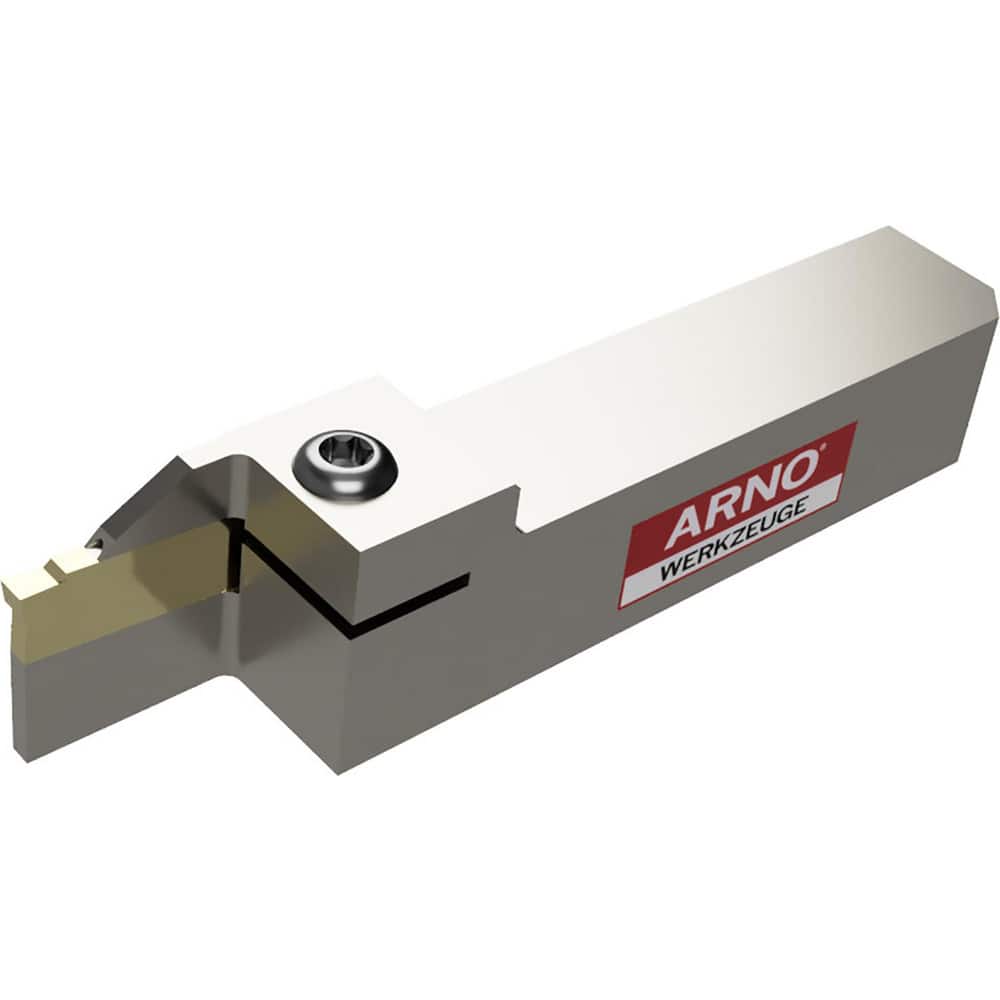

Indexable Cut-Off Toolholders; Hand of Holder: Left Hand; Maximum Depth of Cut (Decimal Inch): 0.4720; Maximum Workpiece Diameter (Decimal Inch): 0.9450; Toolholder Style: ARNO Fast Change; Multi-use Tool: Yes; Compatible Insert Size Code: SE24-30...; Ove
Item #: 99043770
Brand: Arno
Model #: 116748
Product Specifications
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.9450 |
| Toolholder Style | ARNO Fast Change |
| Multi-use Tool | Yes |
| Compatible Insert Size Code | SE24-30... |
| Overall Length (Decimal Inch) | 2.7560 |
| Insert Holding Method | Screw |
| Shank Width/Diameter (Decimal Inch) | 0.6300 |
| Shank Height (Decimal Inch) | 0.6300 |
| Shank Length (Decimal Inch) | 1.8110 |
| Series | SE Groove & Copy for AFC |
| Cutting Tool Application | Grooving; Turning; Parting |
| Minimum Insert Width (Decimal Inch) | 0.1180 |
| Maximum Insert Width (Decimal Inch) | 0.1180 |
| Blade Width (mm) | 3.00 |
| Blade Width (Decimal Inch) | 0.1181 |
| Toolholder Material | Alloy Steel |
| Coolant Through | Low Pressure; Normal Pressure; High Pressure |
