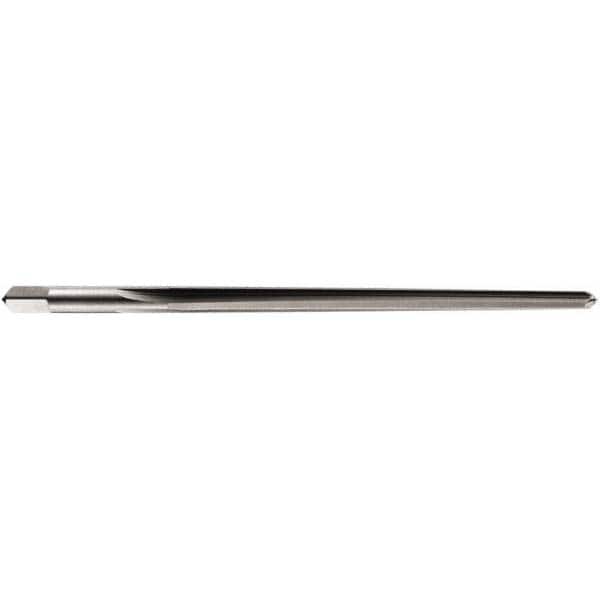

DORMER - 9mm Pin, 0.4767" Diam, 0.3507" Small End, 11.2mm Diam Straight Shank, 160mm Flute, Taper Pin Reamer
Item #: 65641763
Brand: DORMER
Model #: 0140994
Features and Benefits
Spiral flute reamers are used in blind and through-hole operations. They are able to bridge interrupted cuts such as keyways and cross sections.
| Product Specifications | |
|---|---|
| Taper Pin Size (mm) | 9.00 |
| Small End Diameter (mm) | 8.90 |
| Small End Diameter (Decimal Inch) | 0.3507 |
| Reamer Diameter (mm) | 12.10 |
| Reamer Diameter (Decimal Inch) | 0.4767 |
| Flute Type | Spiral |
| Shank Type | Straight |
| Overall Length (mm) | 195 |
| Flute Length (mm) | 160 |
| Number of Flutes | 6 |
| Shank Diameter (mm) | 11.20 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloys; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloys; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel |
| Material Application2 | Stainless Steel; Steel; Structural Steel; Thermosetting Plastics; Titanium; Titanium Alloys |
