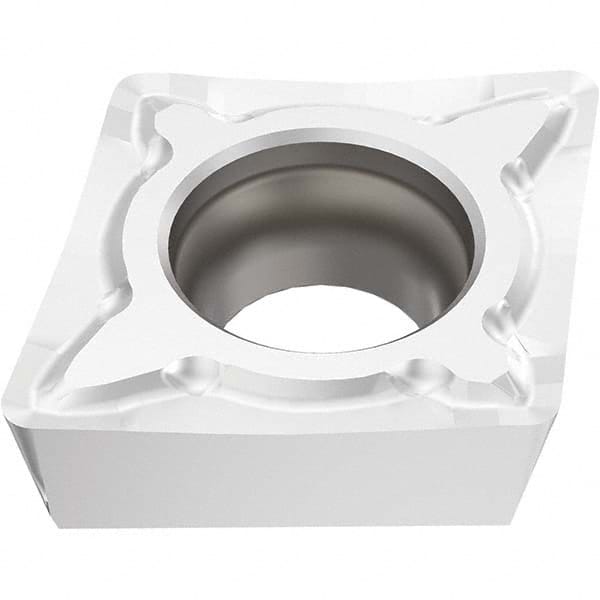

Seco - CPMT32.52 F1 Grade TP25 Carbide Turning Insert
Item #: 96494604
Brand: Seco
Model #: 03276194
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CPMT |
| Insert Size | 32.52 |
| Material | Carbide |
| Length (Decimal Inch) | 0.3819 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1570 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | TP25 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | F1 |
| Hole Diameter (Decimal Inch) | 0.1780 |
| ISO Number | CPMT09T308-F1 |
| Lead Angle | 95.000 |
| Rake | Positive |
| Rake Angle | 17 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CPMT32.52-F1 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CPMT |
| Maximum Depth of Cut (Decimal Inch) | 0.3490 |
| Cutting Edge Style | Honed |
| Shape | Diamond |
