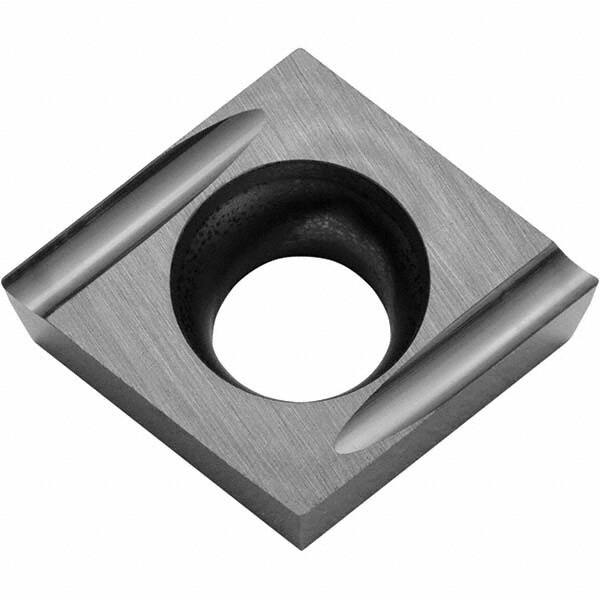

Kyocera - CCET32502 MF-U Grade TN620 Cermet Turning Insert
Item #: 11383502
Brand: Kyocera
Model #: 8862077
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CCET |
| Insert Size | 32502 |
| Material | Cermet |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Manufacturer's Grade | TN620 |
| Coating | TiCN |
| Chip Breaker | MF-U |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | CCET09T301MFL-U |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | CCET32502MFLU TN620 |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Insert Hand | Left Hand |
| Series | CCET |
| Insert Holding Method | Screw or Clamp |
| Cutting Edge Style | Sharp |
| Multi Use Application | External Turning, Facing, Boring, Internal Facing, Sub-Spindle |
| MultiUseTool | Yes |
| Shape | Diamond |
