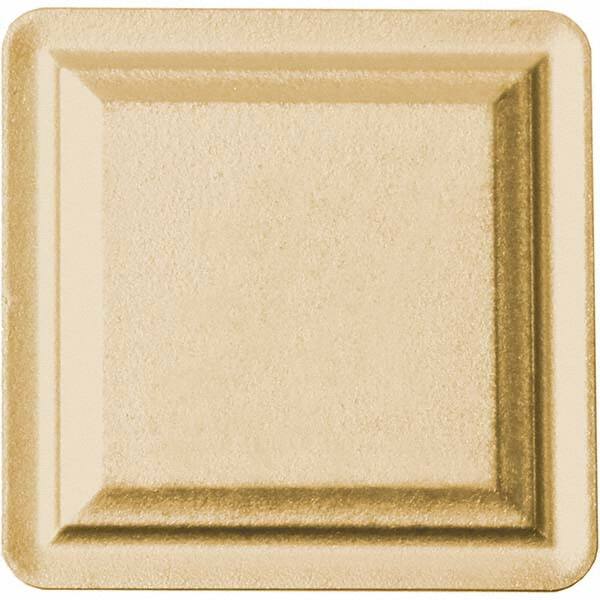

Kyocera - SPMR322 Grade CA025P Carbide Turning Insert
Item #: 97766364
Brand: Kyocera
Model #: 8861828
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPMR |
| Insert Size | 322 |
| Material | Carbide |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | CA025P |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | Micro Columnar |
| ISO Number | SPMR090308 |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | CVD |
| Manufacturers Catalog Number | SPMR322 CA025P |
| Primary Workpiece Material | P |
| Included Angle | 90 |
| Insert Hand | Neutral |
| Series | SPMR |
| Insert Holding Method | Clamp |
| Multi Use Application | External Turning, Facing, Chamfering, Boring |
| MultiUseTool | Yes |
| Shape | Square |
