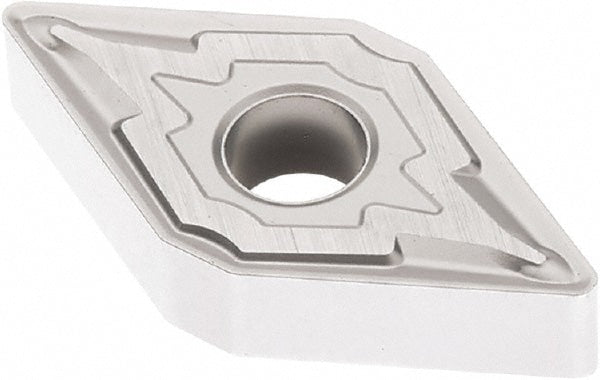

Turning Insert: DNMG433-M3 TK1501, Carbide
Item #: 37752367
Brand: Seco
Model #: 03062794
Product Specifications
| ANSI Insert Code | DNMG433 |
| ISO Insert Code | DNMG150412 |
| Relief Angle | 0 |
| Insert Style | DNMG |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 55 |
| Manufacturer Grade | TK1501 |
| Coating/Finish | TiCN; Al2O3; Cr |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | DNMG-M3 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Medium Machining; Finishing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2028 |
| Maximum Depth of Cut (Decimal Inch) | 0.5630 |
| Insert Holding Method | Pin; Clamp; Lever Lock |
| Width (Inch) | 1/2 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.2204 |
| Insert Length (mm) | 15.50 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Iso Code | DNMG150412-M3 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 03062794 |
| Material Grade | K20; K30; K10 |
| Proprietary Coating Designation | Duratomic |
| Lead Angle | 55 |
| Coating Classification | Duratomic |
| Chip Breaker | M3 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | DNMG433-M3 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Width (mm - 2 Decimals) | 15.50 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Back Turning; Boring |
| ANSI Size Code | 433 |
| ISO Size Code | 150412 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 433 |
