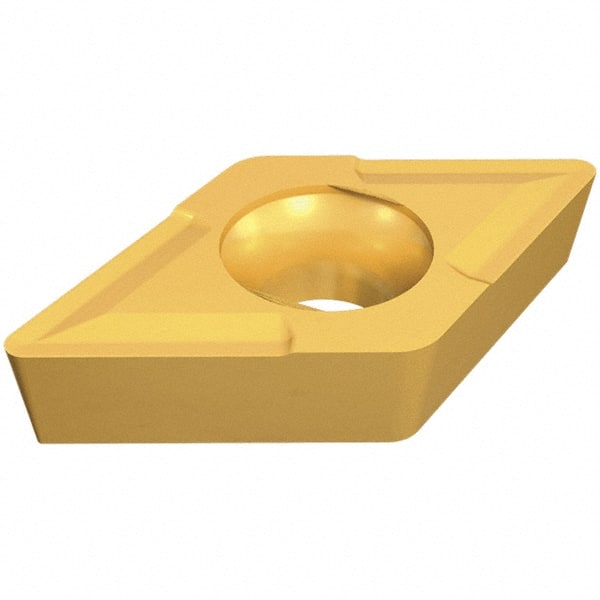

Iscar - DCGT2-1 Grade IC30N Carbide Turning Insert
Item #: 05434089
Brand: Iscar
Model #: 5503026
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Insert Size | 2-1 |
| Material | Carbide |
| Length (mm) | 7.70 |
| Length (Decimal Inch) | 0.3031 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | IC30N |
| Coating | Uncoated |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Relief Angle | 7 |
| Included Angle | 55 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Insert Holding Method | Screw |
| Shape | Diamond |
