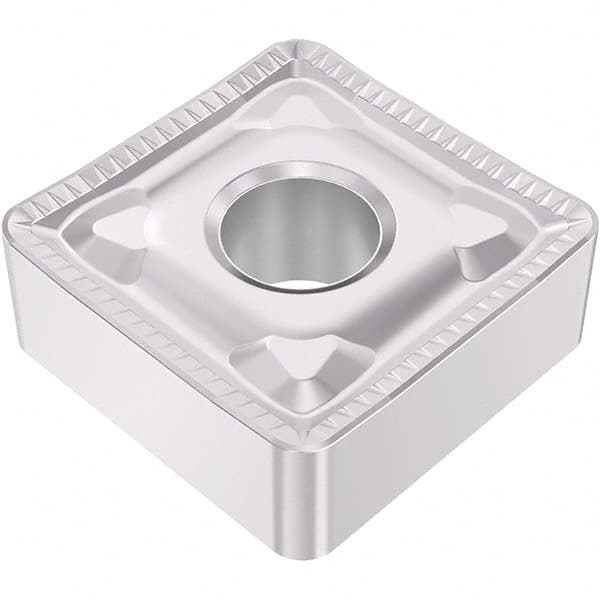

Seco - SNMM866 R68 Grade TM2501 Carbide Turning Insert
Item #: 18614529
Brand: Seco
Model #: 03280002
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMM |
| Insert Size | 866 |
| Material | Carbide |
| Length (Inch) | 29/32 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 3/8 |
| Corner Radius (Inch) | 3/32 |
| Manufacturer's Grade | TM2501 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | R68 |
| Overall Length (Decimal Inch) | 1.0000 |
| Hole Diameter (Decimal Inch) | 0.3591 |
| ISO Number | SNMM250924 |
| Lead Angle | 75.000 |
| Rake | Negative |
| Rake Angle | 17 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | SNMM866-R68 |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Square |
