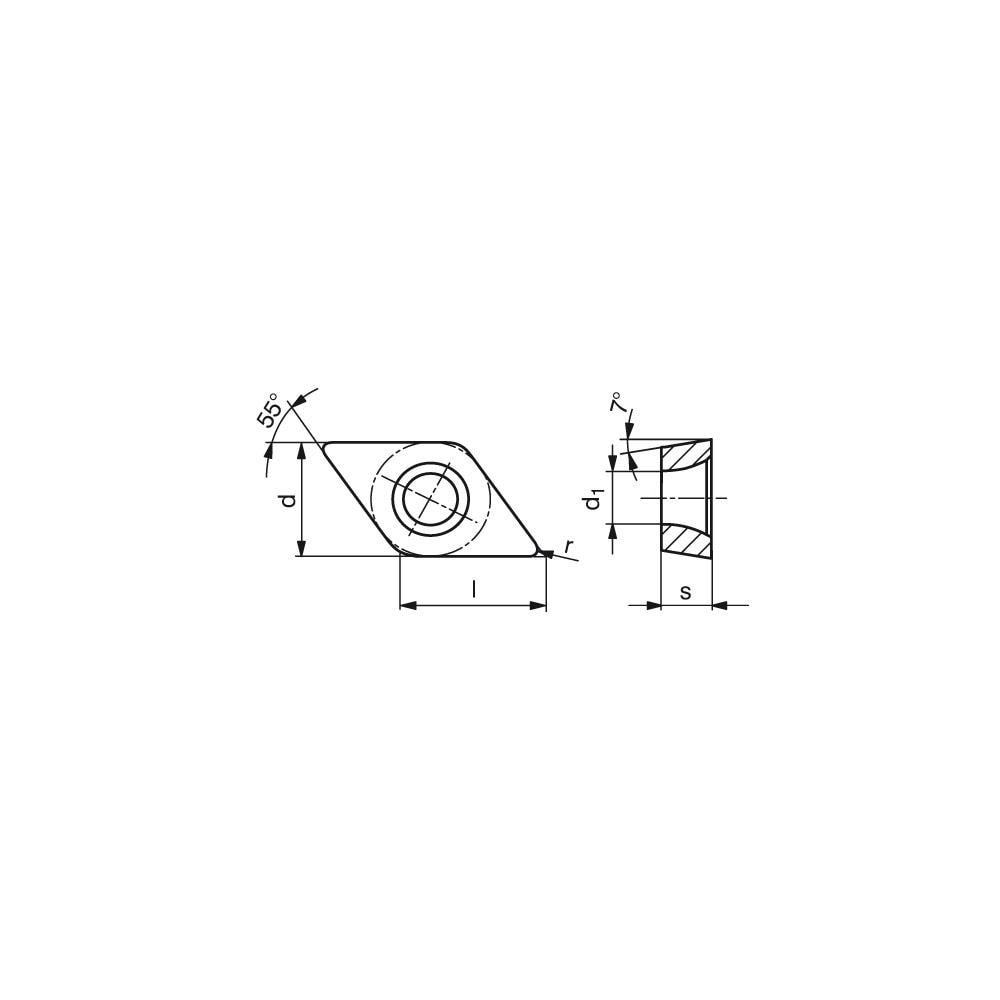

Turning Insert: DCMT32.51EN-29 H216T, Carbide
Item #: 26290999
Brand: Ceratizit
Model #: 7024661600
Product Specifications
| ANSI Insert Code | DCMT32.51 |
| ISO Insert Code | DCMT11T304 |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55 |
| Manufacturer Grade | H216T |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | DCMT |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.4567 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | Uncoated |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | K; N |
| Secondary Workpiece Material | Universal; Cast Iron |
| Secondary Workpiece Material Code | K; O |
| Iso Code | DCMT 11T304EN-29 H216T |
| Chip Breaker | 29 |
| ANSI Size Code | 32.51 |
| ISO Size Code | 11T304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
