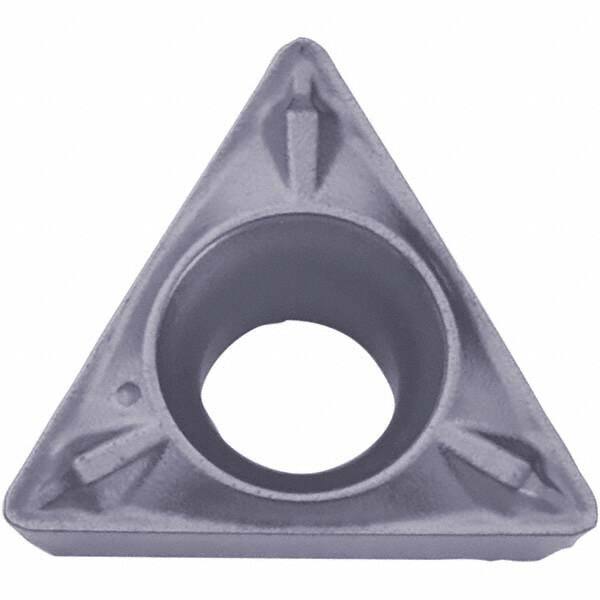

Kyocera - TCMX18151 WP Grade PR1725 Carbide Turning Insert
Item #: 11391190
Brand: Kyocera
Model #: 8863510
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMX |
| Insert Size | 18151 |
| Material | Carbide |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | PR1725 |
| Coating | Megacoat Nano Plus |
| Chip Breaker | WP |
| Hole Diameter (Decimal Inch) | 0.0984 |
| ISO Number | TCMX090204WP |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | TCMX18151WP PR1725 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Series | TCMX |
| Insert Holding Method | Screw or Clamp |
| Cutting Edge Style | Wiper Edge |
| MultiUseTool | No |
| Shape | Triangle |
