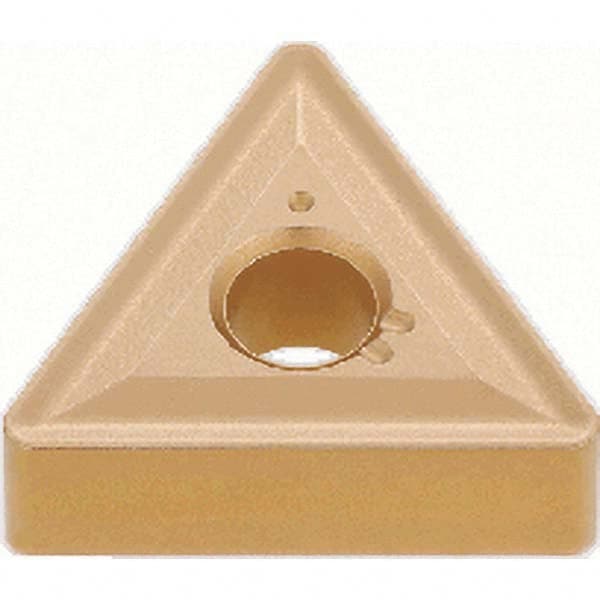

Tungaloy - TNMG543 Grade T9225 Carbide Turning Insert
Item #: 11720414
Brand: Tungaloy
Model #: 6781262
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 543 |
| Material | Carbide |
| Length (Decimal Inch) | 1.0830 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | T9225 |
| Coating | TiN/TiCN/Al2O3/TiN |
| Material Grade | P20/P30 |
| Insert Length (Decimal Inch) | 1.0830 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TNMG270612 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Shape | Triangle |
