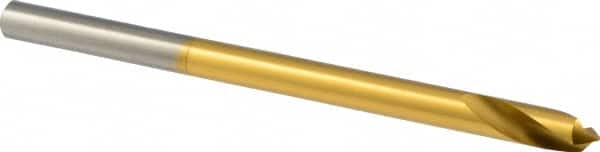

Precision Twist Drill - 1/4" Body Diam, 90°, 4" OAL, High Speed Steel Spotting Drill
Item #: 78578200
Brand: Precision Twist Drill
Model #: 087918
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Body Diameter (Inch) | 1/4 |
| Body Diameter (Decimal Inch) | 0.2500 |
| Drill Point Angle | 90 |
| Spotting Drill Material | High Speed Steel |
| Spotting Drill Finish/Coating | TiN |
| Overall Length (Inch) | 4 |
| Flute Length (Inch) | 3/4 |
| Shank Diameter (Inch) | 1/4 |
| Cutting Direction | Right Hand |
| Tool Application | Spotting |
| Insertable Cutter Head | No |
| Tapered | No |
| Series/List | SPRG-90 |
